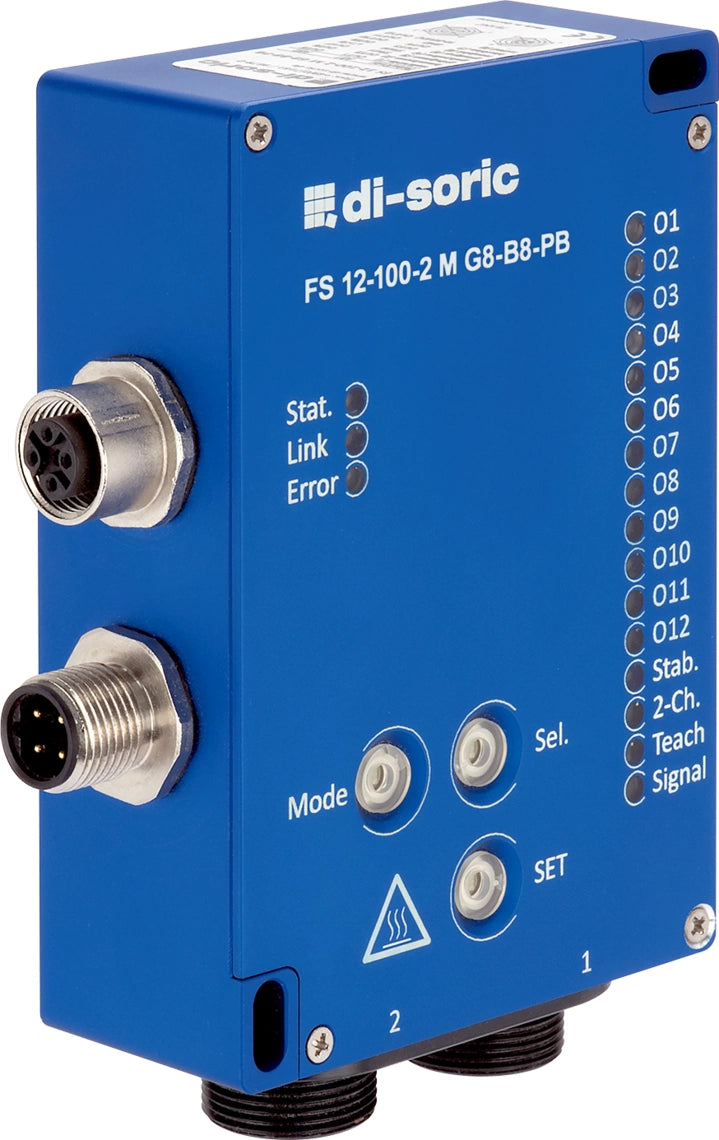

DI-Soric FS 12-100-2 M G8-B8-PB Color sensor

The FS-100 color sensor distinguishes many colors, and up to 100 colors can be saved. It is operated either by keys or software. Variants with Ethernet and PROFIBUS enable digital data transmission of process and color values.

• Up to 100 color channels
• Integrated long-term stability
• Distinction of smallest shade nuances
• Very short response time
• Adjustable color tolerance
• Parameterization by keys and software
• Key lock function
• High ambient light compensation
• Exportable measured values for evaluations (.csv)
• For Profibus interface connection

Service voltage	18 … 28 V DC
No-load current (max.)	500 mA
Housing dimensions	70 x 100 x 30 mm
Housing length	70 mm
Housing height	100 mm
Housing width	30 mm
Fiber-optic cable connection / fixed optics	M18 x 1
Housing material	Aluminum (Anodized)
Protection class	III, operation on protective low voltage
Color memory internal	100
Number of measuring channels	1
Trigger input	TRG 0
Teach input	TRG 1
Voltage drop (max.)	2 V
Pulse stretching	0 … 65535 ms adjustable
Light source	LED (can be switched off)
Color	White
Light spot size	Dependent on focus optics
Color resolution	DE Lab < 1
Ambient light compensation	can be switched off
Switching hysteresis (max.)	0 … 255 %
Tolerance ranges	5 selectable by keys / using software
Operating elements	3
Display	LED (19x)
Ambient temperature during operation	-10 … +55 °C
Protection type	IP 54
Connection	Connector, M9, 8-pin
