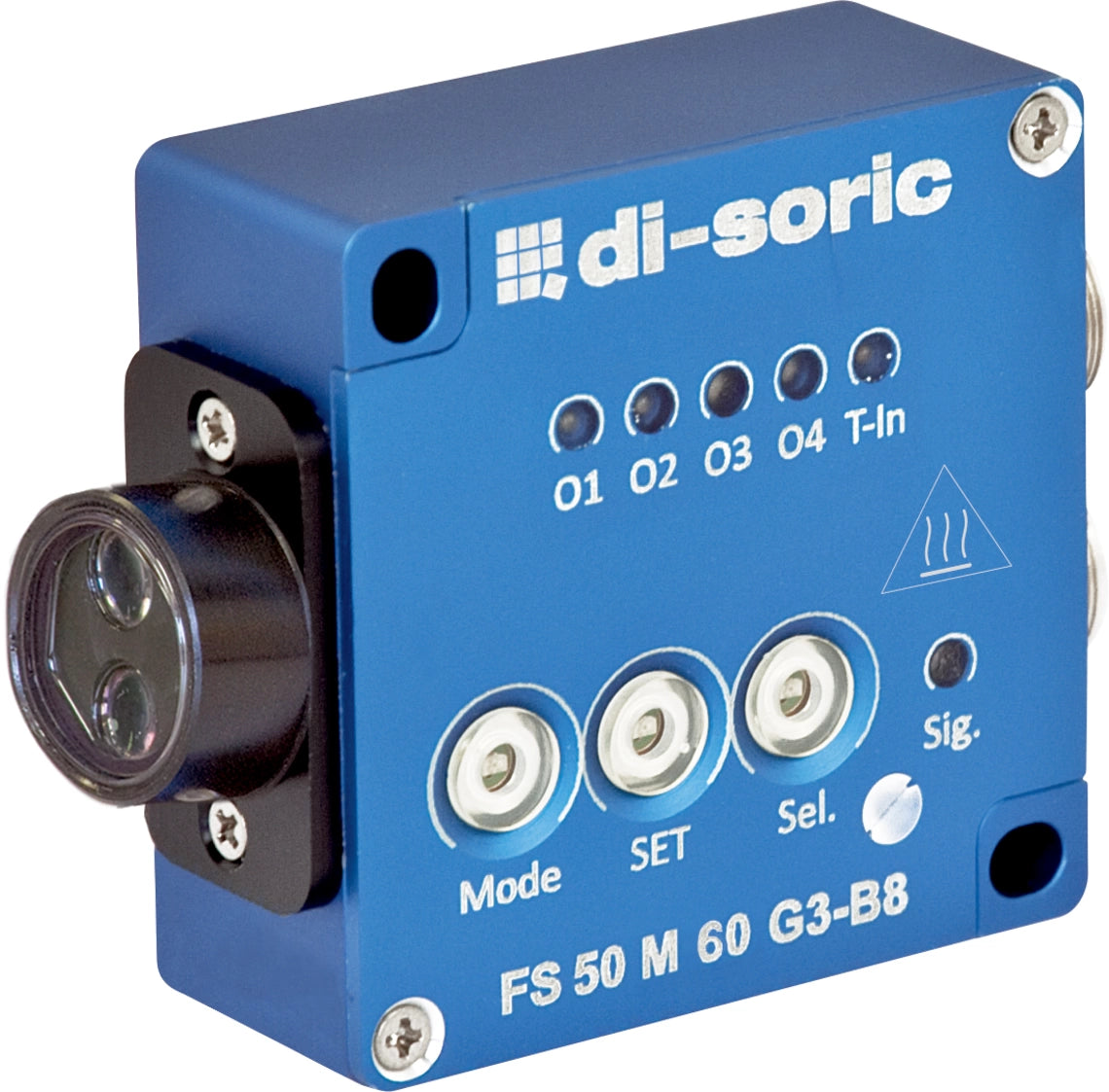

DI-Soric FS 50 M 60 G3-B8 Color sensor

The FS-50 color sensor with a fiber optic connection or fixed optics can store up to 15 colors. Colors and tolerances are learned via a keypad with Multiteach. Some variants of the FS-50 series can be reproducibly configured via PC software.

• Fixed optics
• 4-channel, teach-in for many standard applications
• 15 channels with binary coding
• Very short response time
• Adjustable color tolerance
• High ambient light compensation
• Integrated long-term stability
• Distinction of smallest shade nuances
• Parameterization by keys and software
• Key lock function

Service voltage	18 … 28 V DC
No-load current (max.)	500 mA
Housing dimensions	50 x 50 x 21 mm
Housing length	21 mm
Housing height	50 mm
Housing width	50 mm
Fiber-optic cable connection / fixed optics	Fixed optics
Housing material	Aluminum (Anodized)
Protection class	III, operation on protective low voltage
Color memory internal	100
Number of measuring channels	1
Trigger input	TRG 0
Teach input	TRG 1
Switching output	pnp/npn (4x), NO/NC
Voltage drop (max.)	2 V
Interface	RS232
Pulse stretching	0 … 65535 ms adjustable
Light source	LED (can be switched off)
Color	White
Light spot size	5 … 10 mm
Color resolution	DE Lab < 1
Ambient light compensation	dynamic, can be switched off
Range	30 … 60 mm
Switching hysteresis (max.)	0 … 255 % (10 % default)
Tolerance ranges	5 selectable by keys / using software
Operating elements	3
Display	LED (Channel state (4x), programming (5x))
Response time	0.05 ms
Release time	< 20 000 Hz
Ambient temperature during operation	-10 … +55 °C
Protection type	IP 54
Connection	Connector, M9, 8-pin
