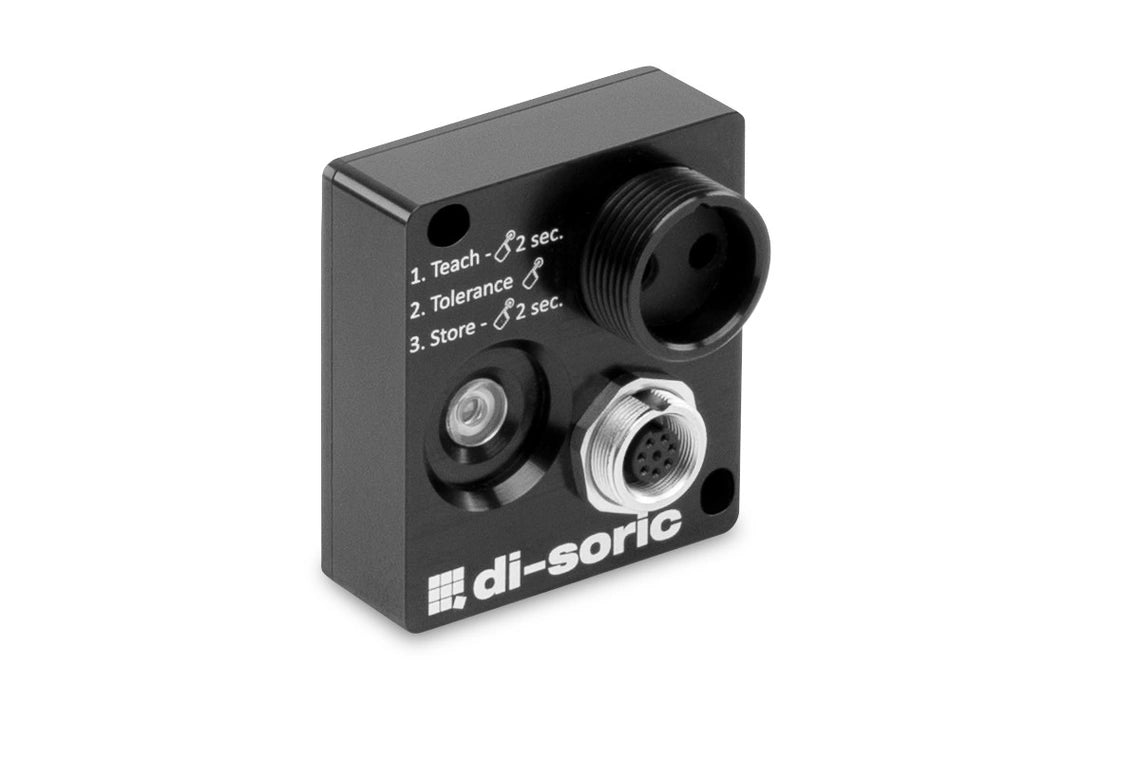

DI-Soric FSB 10 M G1-B8 Color sensor

The FS-10 color sensor is suited for narrow installation space conditions. With the teach-in key, a color channel can be learned intuitively and saved in the sensor. With Multiteach and permanently stored tolerance thresholds, the finest color nuances can be distinguished.

• Adjustable color tolerance
• Distinction of smallest shade nuances
• High ambient light compensation
• Integrated long-term stability
• Status display via LEDs

Service voltage	12 … 28 V DC
No-load current (max.)	500 mA
Housing dimensions	41 x 46 x 14 mm
Housing length	14 mm
Housing height	46 mm
Housing width	41 mm
Fiber-optic cable connection / fixed optics	M18 x 1
Housing material	Aluminum (Anodized)
Protection class	III, operation on protective low voltage
Color memory internal	1
Number of measuring channels	1
Color channels of sensor	1 (Teachable via keys)
Scanning block	Lock (+24 V DC)
Color space mode	L*a*b* (Body colors)
Trigger input	TRG (+24 V DC)
Switching output	Push-pull (1x), 200 mA, NO (pnp) / NC (npn)
Voltage drop (max.)	2 V
Interface	without
Pulse stretching	0 ms / 50 ms (selectable)
Light source	LED
Color	White
Wavelength	420 … 750 nm
Light spot size	Dependent on focus optics
Color resolution	DE Lab < 1
Ambient light immunity	15 kLx
Ambient light compensation	dynamic
Range	Dependent on fiber-optic cable
Switching hysteresis (max.)	10 %
Tolerance ranges	5 levels (3, 6, 9, 15, 30 ∆ELab), automatic tolerance in multiteach mode
Operating elements	1
Display	LED (Integrated in the operating key)
Response time	2.0 ms
Ambient temperature during operation	-15 … +55 °C
Protection type	IP 67
Connection	Connector, M9, 8-pin
