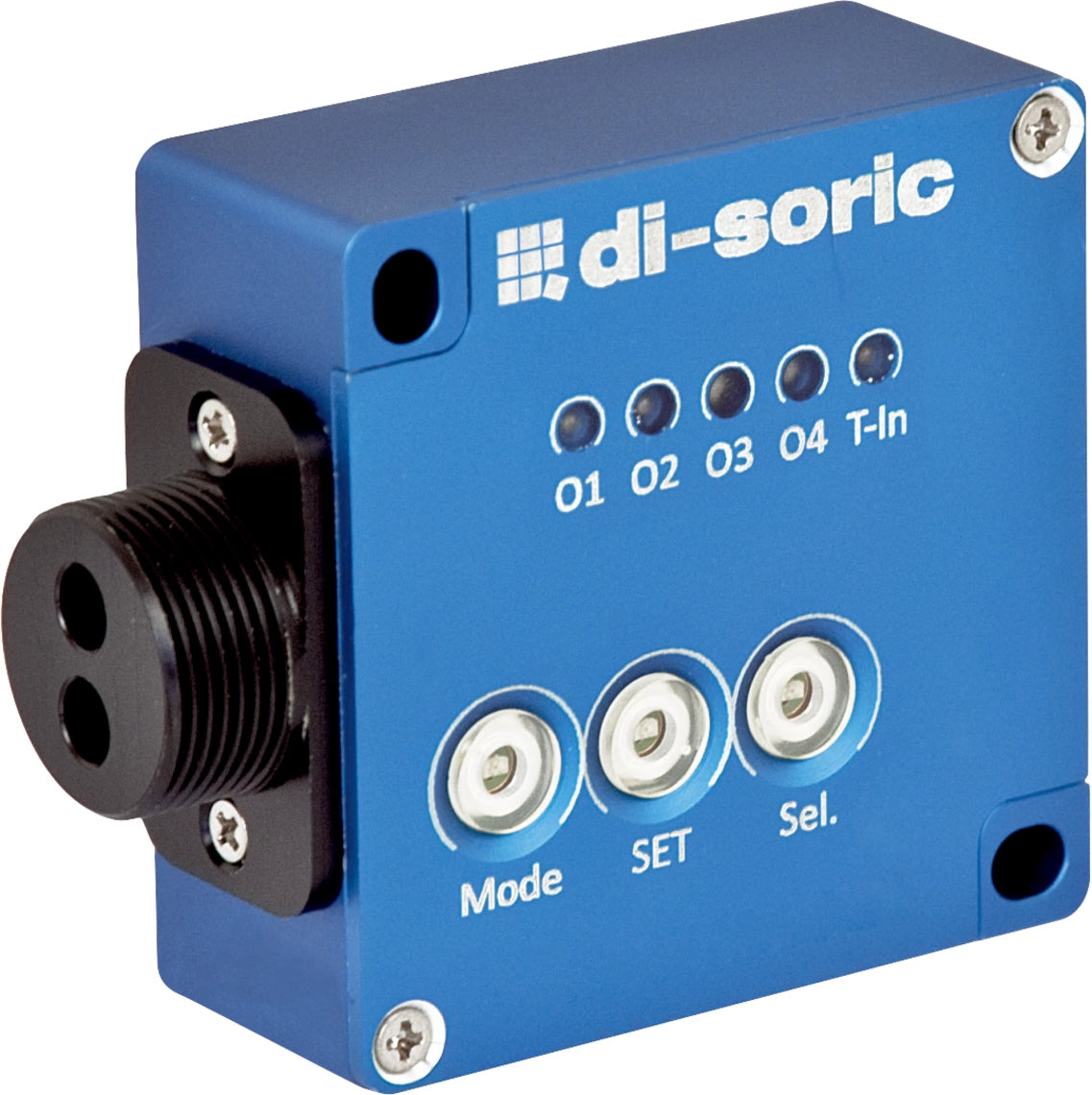

DI-Soric FSB 50 M G3-B8 Color sensor

The FS-50 color sensor with a fiber optic connection or fixed optics can store up to 15 colors. Colors and tolerances are learned via a keypad with Multiteach. Some variants of the FS-50 series can be reproducibly configured via PC software.

• Extensive range of fiber optic cables
• 4-channel, teach-in for many standard applications
• Very short response time
• Adjustable color tolerance
• Distinction of smallest shade nuances
• High ambient light compensation
• Integrated long-term stability
• Status display via LEDs
• Key lock function

Service voltage	18 … 28 V DC
No-load current (max.)	500 mA
Housing dimensions	50 x 50 x 21 mm
Housing length	21 mm
Housing height	50 mm
Housing width	50 mm
Fiber-optic cable connection / fixed optics	M18 x 1
Housing material	Aluminum (Anodized)
Protection class	III, operation on protective low voltage
Color memory internal	4
Number of measuring channels	1
Color channels of sensor	4 (Teachable via keys)
Scanning block	Lock (+24 V DC)
Color space mode	L*a*b* (Body colors)
Trigger input	TRG (+24 V DC)
Switching output	pnp+npn (4x), < 100 mA
Voltage drop (max.)	2 V
Pulse stretching	0 ms / 50 ms (selectable)
Light source	LED
Color	White
Light spot size	Dependent on focus optics
Color resolution	DE Lab < 1
Ambient light compensation	dynamic
Range	Dependent on fiber-optic cable
Switching hysteresis (max.)	10 %
Tolerance ranges	5 selectable by keys
Operating elements	3
Display	LED (Channel state (4x), programming (5x))
Response time / scanning frequency	10 ms / 100 Hz or 1 ms / 1,000 Hz, parametrierbar
Ambient temperature during operation	-10 … +55 °C
Protection type	IP 54
Connection	Connector, M9, 8-pin
