DI-Soric HS-BE-A-NS-TN-M4 Ball joint bracket

The product brackets stand out for their robust construction and simple and reliable assembly.

• Load capacity min. 60 Nm (static)
• Torsional strength min. 8 Nm
• Adjustment range: 45°(Inclination) / 360° (rotation)

Housing dimensions	50 x 6.9 x 4.6 mm
Housing material	Aluminum
Component	Ball head BEK-A
To be used for	Barlights BE 1-A ...
Product series	Z-UBT-KU-PH Product bracket

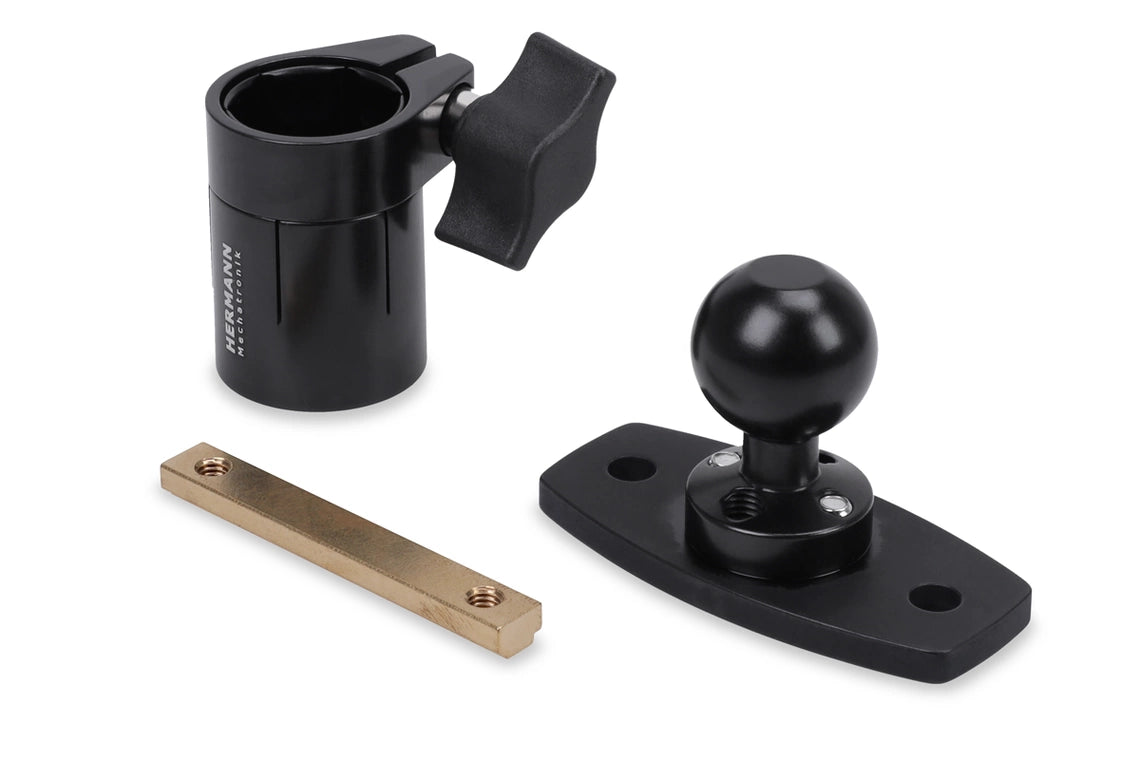

Scope of delivery	Sliding block (BEK-A), Ball head, Foot plate, Ball housing, Fixing material
