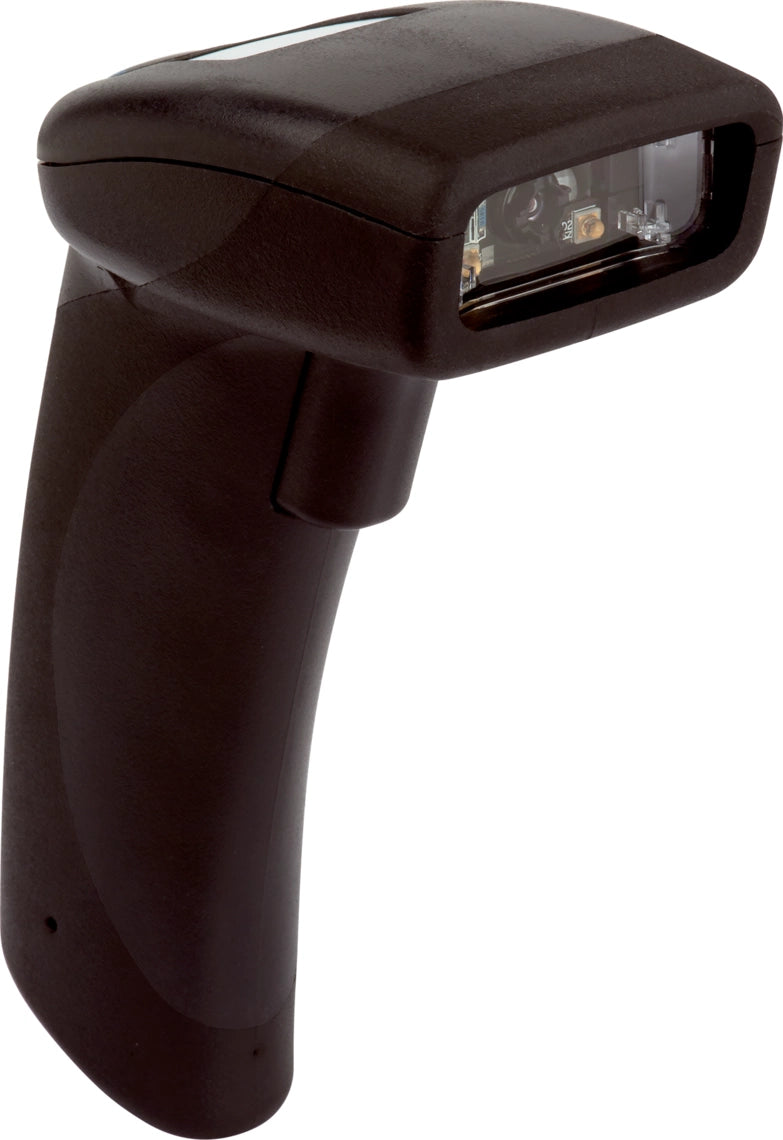

DI-Soric ID-80-IM3-2-S Handheld reader ID-80

The ID-80 is a lightweight and compact barcode reader which quickly decodes 1D and 2D codes. Thanks to its ergonomic design, it can be operated comfortably over long periods of time. This feature, its long service life, as well as a 5-year guarantee, make it a reliable investment. The easy-to-operate code reader exceeds one-line laser scanners and linear imagers with complete, omnidirectional barcode reading. In combination with its multifaceted programmability, the ID-80 transfers data quickly and reliably into any enterprise solution.

• Fast, omnidirectional recognition of 1D, 2D codes and postal barcodes
• Manual or automatic trigger
• Fatigue-free work due to low weight
• Ergonomic design
• Reading feedback using LED and audible tone

Service voltage	5 V DC
No-load current (max.)	300 mA
Housing dimensions	132 x 52 x 91 mm
Housing length	91 mm
Housing height	132 mm
Housing width	52 mm
Housing material	Plastic
Weight	110 g
Note	Additional components are required for operation
Code type - 1D-Codes (barcodes)	BC 412, Code 11, Codabar, Code 128, Code 39, Code 32, Pharmacode, GSI DataBar, Hong Kong 2 of 5, IATA 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI Plessey, NEC 2 of 5, Plessey, Straight 2 of 5, Telepen, Trioptic, UPC / EAN / JAN
Code type - 2D-Codes	Aztec Code, Data Matrix, QR code, Micro QR Code, QR Model 1, GoCode® (protected - additional license required), Data Matrix Rectangular Extension
Code type - Stacked codes	PDF 417, Micro PDF, GS1 Composite (CC-A/CC-B/CC-C)
Interface	RS232 (In operation with ID-K-SD/DCJ-RJ50-2)
Image sensor	CMOS
Resolution	1280 x 960 Pixel
Position scanner to code	Tilt 180°, Pitch ± 65°, Skew ± 60°
Ambient temperature during operation	-20 … +55 °C
Protection type	IP 54
Connection	RS232, RJ 50
