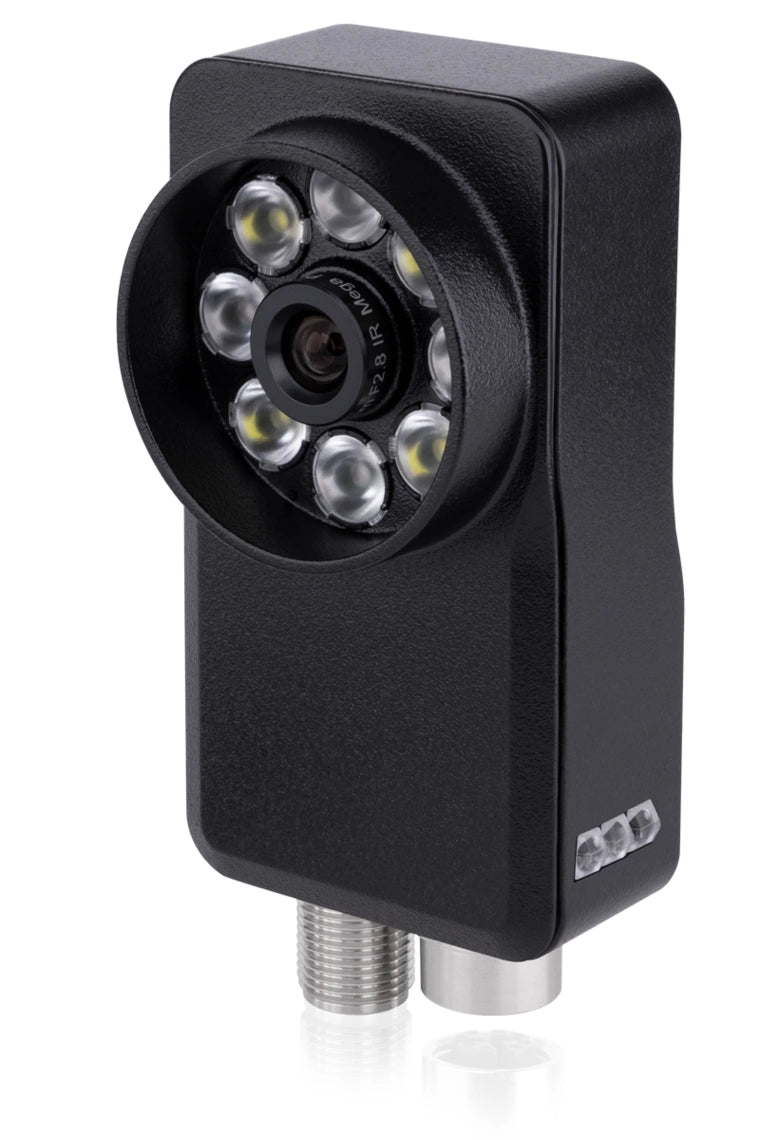

DI-Soric ID600-BM38-EP15/300OCR ID-600 fixed-mounted ID reader

Our ID-600 offers outstanding flexibility at maximum read rates. Easy lens changes and integrated high-performance illumination ensure excellent images. The update-capable ID-600 can be commissioned without prior knowledge and connected to existing PLC modules thanks to a variable Profinet connection.

• Inspection tasks: Localize and Detect (Read) ID code and plain text
• Upgrade option: DPM (Direct Part Mark)
• The specialist, compact and high-performance
• High power LED illumination in red and white
• Flexible and productive Software nVision-i
• Parameter changes via linked Profinet inputs during execution
• Simple & intuitive parameterization
• Flexible working distances of 50 - 2,000 mm by changing lenses
• Customization option

Service voltage	18 … 30 V DC
No-load current (max.)	1000 mA (24 V DC)
Insulation voltage endurance	500 V
Housing dimensions	85 x 45 x 34 mm
Housing length	34 mm
Housing height	85 mm
Housing width	45 mm
Housing material	Die-cast zinc (Black, powder-coated)
Material	PMMA (Window / optics)
Lens connection	S-mount
Weight	265 g
Protection class	III, operation on protective low voltage
Risk group (DIN EN 62471)	Risk group 1
Approvals	UL
Model	ID-600
Design	Cuboid design
Note	EtherNet/IP from nVision-i 24.1
Shutter	global
Code type - 1D-Codes (barcodes)	Code 2 of 5, Codabar, Code 128, Code 39, Databar, UPC / EAN, Pharmacode
Code type - 2D-Codes	Aztec Code, Data Matrix, Dotcode, QR
Code type - Stacked codes	PDF 417
Scope of delivery	ID600-BM38-EP15/300OCR, O-S1-S-080-40, CS60-WINDOW
Switching output	Push-pull, 100 mA
Switching output number	4 (programmable, 1 (Ready))
Voltage drop (max.)	2 V
Interface	Ethernet
Protocols	TCP/IP, FTP/SFTP, Profinet, EtherNet/IP
Color	Red / white switchable (internal)
Focal length	8 mm (exchangeable S-mount lens)
Resolution	1456 x 1088 Pixel
Pixel size	3.45 x 3.45 μm
Working distance	50.0 … 2000 mm
Display	LED green - Operation, yellow - DATA-Link yellow - Trigger
FPS - Frames Per Second (max.)	30 images/second
Ambient temperature during operation	0 … +50 °C
Vibration/shock resistance	10 to 55 Hz / 1.0 mm / 30 g / 11 ms
Protection type	IP 67
Connection	Connector, M12, 12-pin (A-coded)
Connection 2	Socket, M12, 8-pin (X-coded)
Cable	Connection cables max. 25 m
