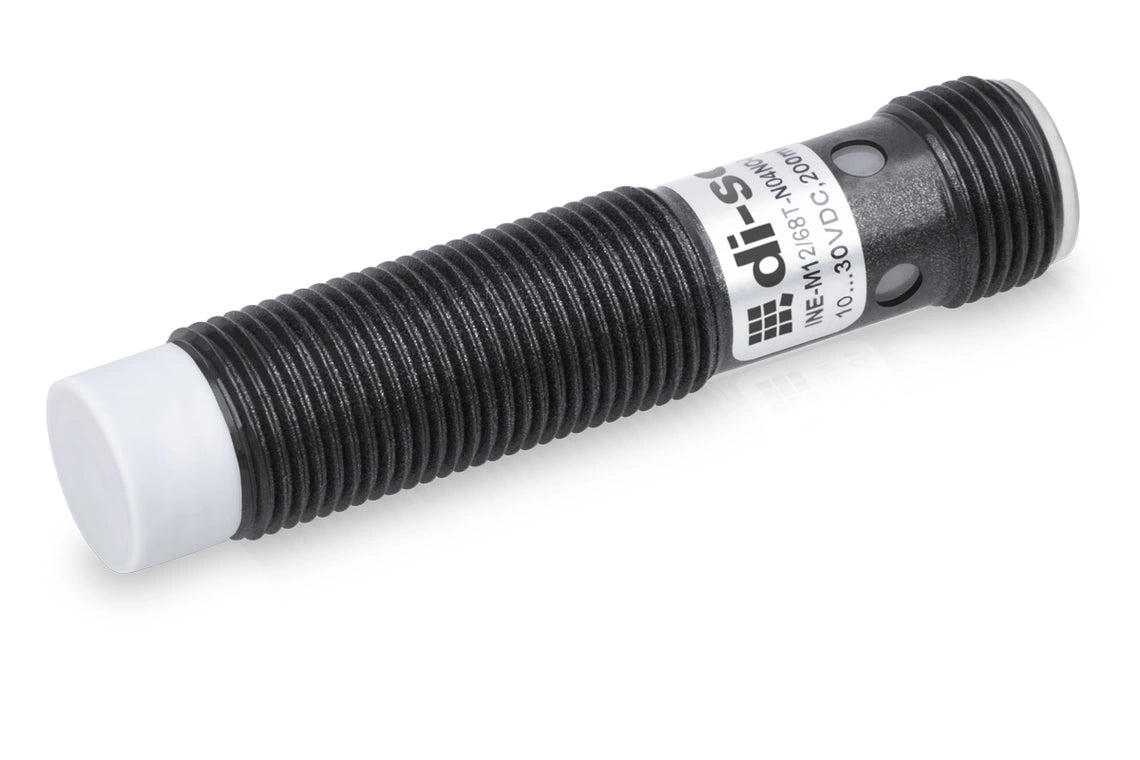

DI-Soric INE-M12/68T-N04NS-B4 Inductive proximity sensor INE

The INE Industrial series includes high-quality, inductive proximity sensors that are available in all sizes up to M30 – in both normal and short designs. They offer maximum flexibility thanks to 3- and 4-pin M8 and M12 plug connectors and PVC and PUR cable variants. IO-Link sensors are also available for modern and efficient automation. Many of our inductive proximity switches have UL and UKCA certifications and are ideal for international use.

• Welding spark resistant due to PTFE coating
• Weld-proof
• Magnetic field test for DC/AC fields up to 150 mT

Service voltage	10 … 30 V DC
Inverse polarity protection	Yes
Short-circuit protection	Yes
Installation type	non-flush
Thread	M12 x 1
Housing length	68 mm
Housing material	Brass (PTFE coated)
Material of sensor probe	PTFE
Operating principle	inductive
Evaluation	digital
Design	Thread
Design	Weld-proof
Product series	INE Industrial
Switching output	npn, 200 mA, NO
Voltage drop (max.)	1.5 V
Switching distance (SN)	4 mm
Switching hysteresis (max.)	15 %
LED Anzeige	Yes
Switching frequency	800 Hz
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 67
Connection	Connector, M12, 4-pin
