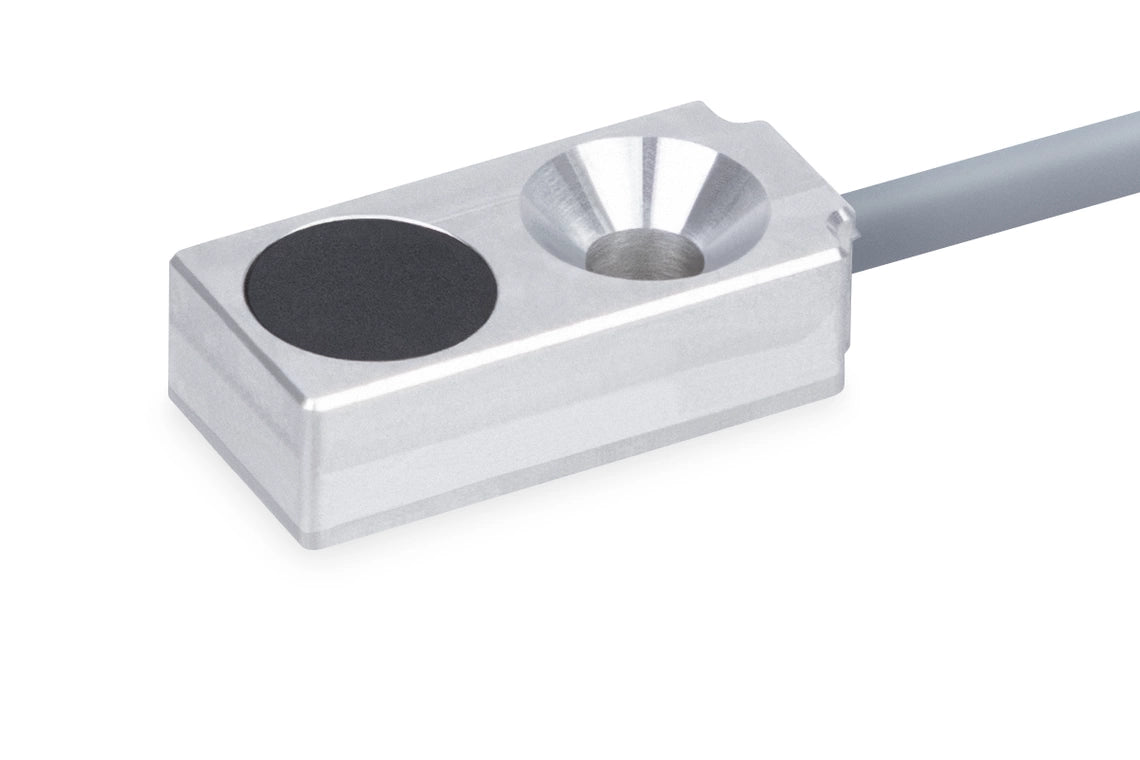

DI-Soric INQ-R08/16M-B02PS-2C3 Inductive proximity sensor INQ

The INQ Cube design includes high-performance inductive proximity sensors in sizes 5 x 5 mm, 8 x 8 mm, 40 x 40 mm and the rectangular design in 8 x 16 mm, 28 x 10 mm and 40 x12 mm and enables optimal adaptation to a wide variety of industrial applications. Thanks to the robust plastic or metal housing, these inductive proximity with switching distances of 0.6 mm to 40 mm, they cover a wide range of applications.

• Ultra-compact Design
• Active area on the top
• Screw mounting

Service voltage	10 … 30 V DC
Internal power consumption	< 10 mA
Installation type	Flush
Housing dimensions	8 x 16 mm
Housing length	16 mm
Housing height	4.7 mm
Housing width	8 mm
Housing material	Aluminum
Material of cable	PVC
Protection class	III, operation on protective low voltage
Operating principle	inductive
Evaluation	digital
Design	Cuboid design
Characteristics	Double switching distance
Product series	INQ Cubic Model
Switching output	pnp, 200 mA, NO
Voltage drop (max.)	1.5 V
Switching distance (SN)	2 mm
Switching hysteresis (max.)	< 15 %
Switching frequency	1000 Hz
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 67
Connection	Cable, 2.0 m (flying leads)
