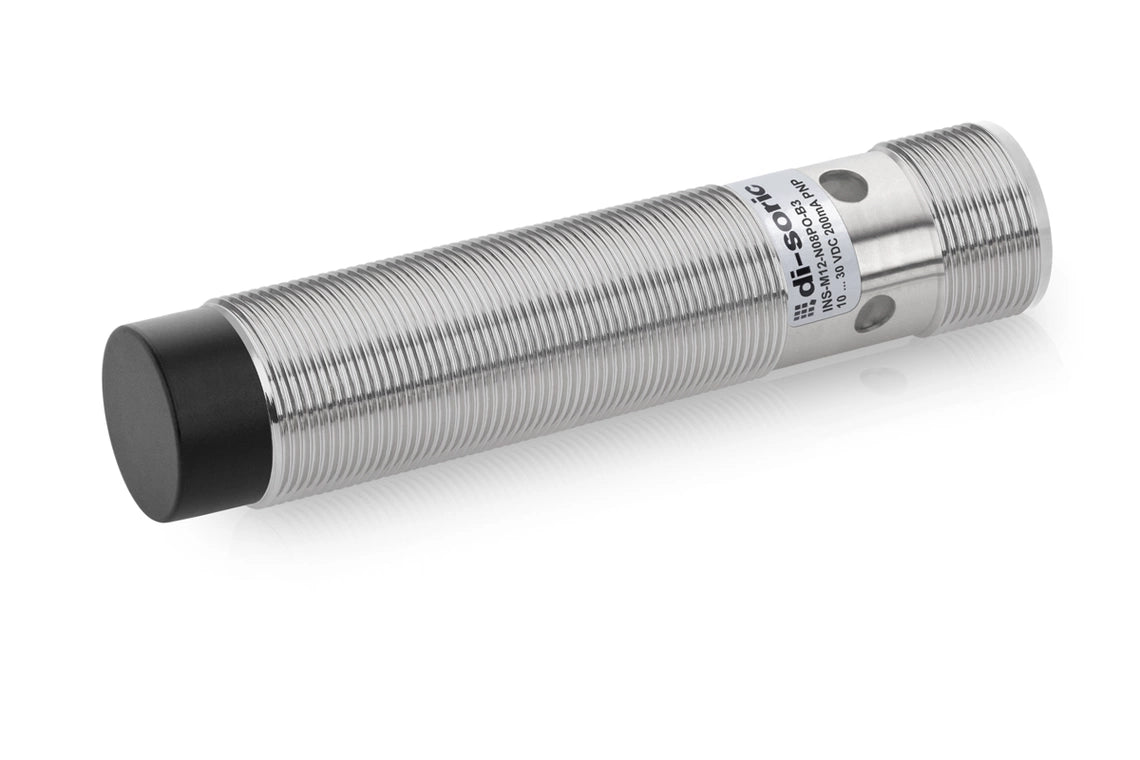

DI-Soric INS-M12-N04PO-B3, Inductive proximity sensor. INS-100 Standard, P\n:213271

The INS Standard series offers reliable inductive proximity sensors for a wide variety of industrial applications. This series, which has an excellent price/performance ratio, is ideal for standard applications in automation technology. Available in conventional designs of Ø 6.5 mm up to M30 and with switching distances of 1 to 15 mm, these sensors offer maximum flexibility for different fields of application. The inductive proximity switches are available with both the PVC cable and plug connection and ensure easy integration into existing systems.

• Single switching distance
• Metal connector M12
• Short-circuit protection
• LED switching status display
• High protection type

Service voltage	10 … 30 V DC
Internal power consumption	10 mA
Insulation voltage endurance	< 500 V DC
Installation type	non-flush
Thread	M12 x 1
Housing length	68 mm
Housing material	Brass (nickel-plated)
Protection class	III, operation on protective low voltage
Operating principle	inductive
Evaluation	digital
Design	Thread
Characteristics	Single switching distance
Product series	INS Standard
Switching output	pnp, 200 mA, NC
Voltage drop (max.)	1.5 V DC
Switching distance (SN)	4 mm
Standardized measuring plate	12 x 12 x 1 mm
Switching hysteresis (max.)	< 10 %
LED Anzeige	Yes
Switching frequency	1000 Hz
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 67
Connection	Connector, M12, 3-pin, A-coded
