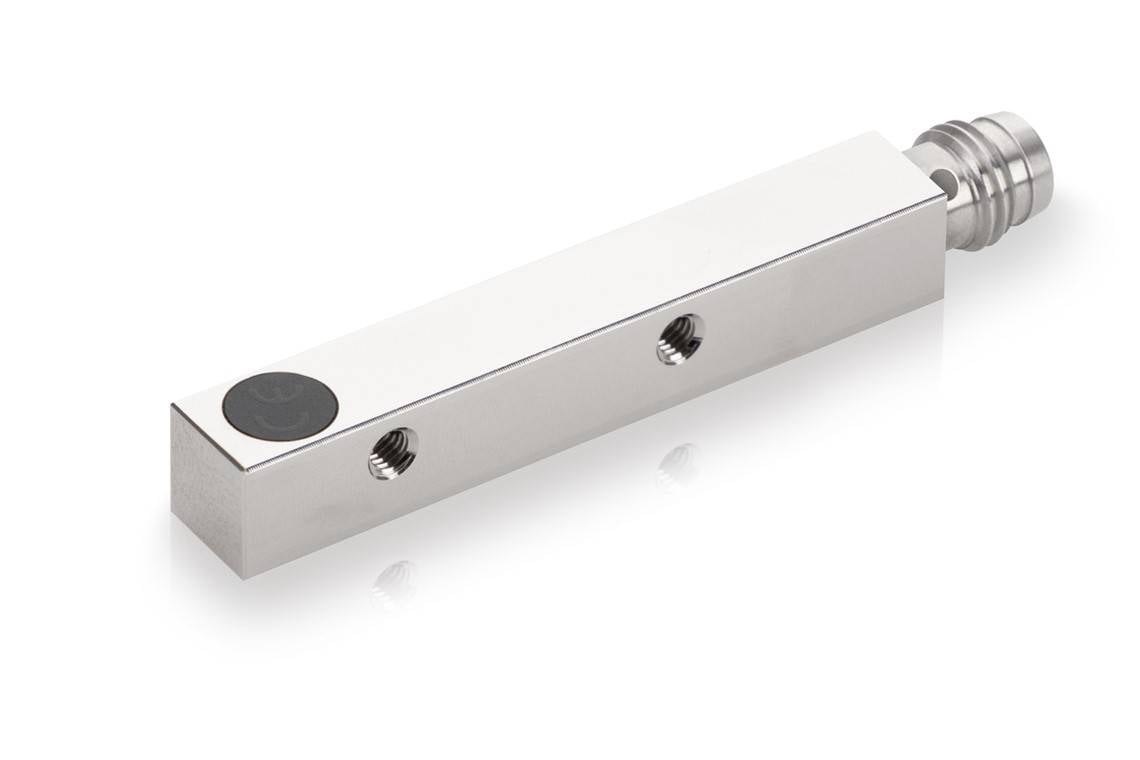

DI-Soric INS-Q08-B02PO-T3, Inductive. Proximity sensors. INS-200 Standard 2-SN, 213315

The INQ Cube design includes high-performance inductive proximity sensors in sizes 5 x 5 mm, 8 x 8 mm, 40 x 40 mm and the rectangular design in 8 x 16 mm, 28 x 10 mm and 40 x12 mm and enables optimal adaptation to a wide variety of industrial applications. Thanks to the robust plastic or metal housing, these inductive proximity with switching distances of 0.6 mm to 40 mm, they cover a wide range of applications.

• Double switching distance
• Metal connector M8
• Short-circuit protection
• LED switching status display
• High protection type

Service voltage	10 … 30 V DC
Internal power consumption	12 mA
Insulation voltage endurance	< 500 V DC
Installation type	Flush
Housing dimensions	8 x 8 mm
Housing length	60 mm
Housing height	8 mm
Housing width	8 mm
Housing material	Brass (nickel-plated)
Protection class	III, operation on protective low voltage
Operating principle	inductive
Evaluation	digital
Design	Cuboid design
Characteristics	Double switching distance
Product series	INQ Cubic Model
Switching output	pnp, 200 mA, NC
Voltage drop (max.)	1.5 V DC
Switching distance (SN)	2 mm
Standardized measuring plate	8 x 8 x 1 mm
Switching hysteresis (max.)	< 15 %
LED Anzeige	Yes
Switching frequency	2000 Hz
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 67
Connection	Connector, M8, 3-pin, A-coded
