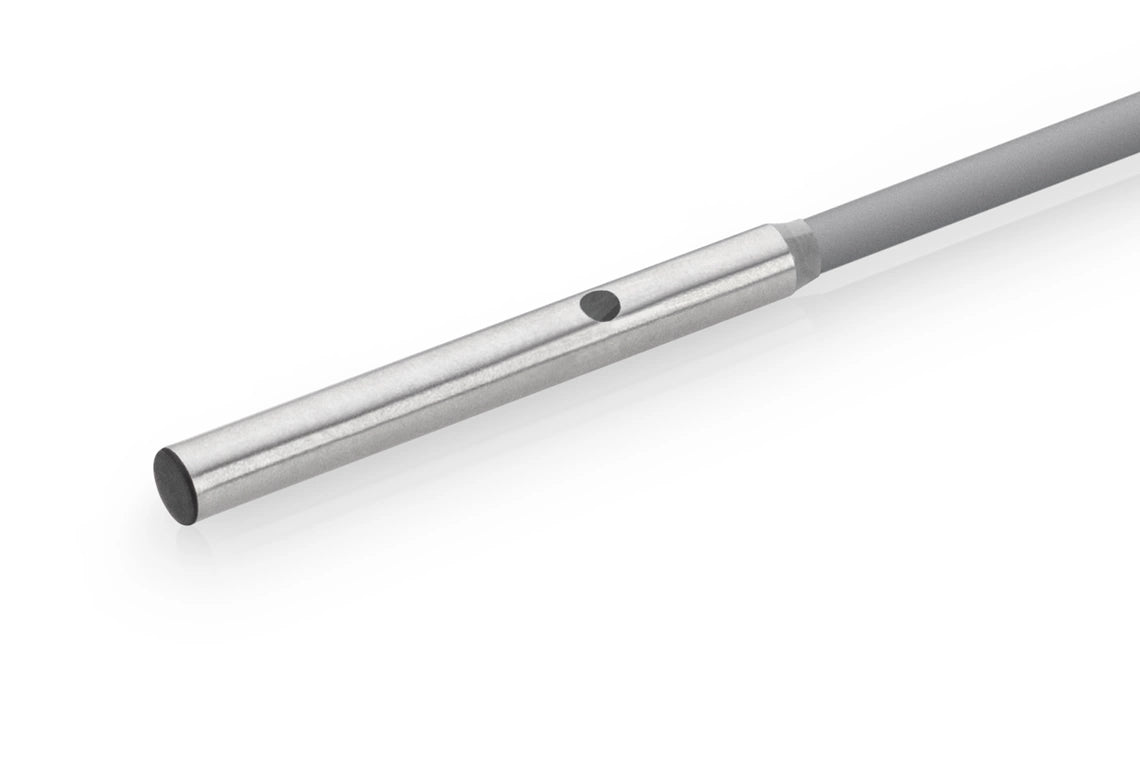

DI-Soric INSM-M05-B01NS-2C Inductive proximity sensor INM

The INM Miniature series offers a large selection of high-precision and efficient inductive proximity sensors. These compact sensors are specially designed for applications with limited space and enable reliable object detection in the smallest installation spaces. Available in a robust metal housing with diameters of Ø 3.0 mm to M5, proximity sensors are ideal for precise automation solutions. Thanks to their compact design, they offer maximum performance within a minimum amount of space.

• Double switching distance
• Highly flexible cable
• Short-circuit protection
• LED switching status display
• High protection type

Service voltage	10 … 30 V DC
Internal power consumption	10 mA
Insulation voltage endurance	< 500 V DC
Installation type	Flush
Thread	M5 x 0.5
Housing length	28 mm
Housing material	Stainless steel (V4A)
Material of cable	PVC
Protection class	III, operation on protective low voltage
Operating principle	inductive
Evaluation	digital
Design	Thread
Characteristics	Double switching distance
Design	Miniature design
Product series	INM Miniature
Switching output	npn, 200 mA, NO
Voltage drop (max.)	1.5 V DC
Switching distance (SN)	1 mm
Standardized measuring plate	5 x 5 x 1 mm
Switching hysteresis (max.)	< 10 %
LED Anzeige	Yes
Switching frequency	2000 Hz
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 67
Connection	Cable, 2.0 m (flying leads)
