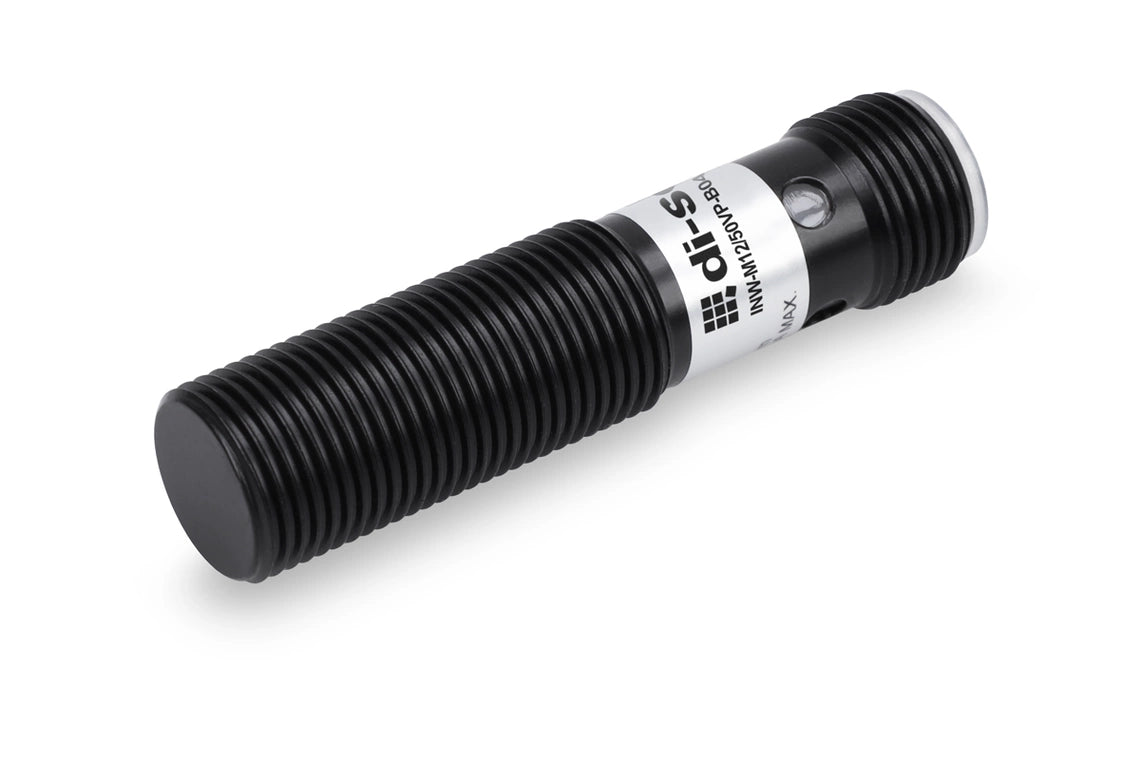

DI-Soric INW-M12/50VP-B04PS-B3 Inductive proximity sensor INW

The INW full metal series includes highly-resilient, inductive proximity sensors, which are highly resilient to mechanical stresses thanks to their complete full-metal housing. In addition to the inductive proximity switches with IP67, this series also includes products with IP69k, which are completely impermeable to various corrosive chemicals used in cleaning processes. This series is perfect for harsh environments where maximum resistance is required.

• Welding spark resistant due to PTFE coating
• Short-circuit protection
• LED integrated in housing
• ESD protection >4 kV
• EFT >1kV

Service voltage	10 … 30 V DC
No-load current (max.)	< 10 mA
Insulation voltage endurance	500 V
Installation type	Flush
Thread	M12 x 1
Housing length	50 mm
Housing material	Stainless steel (PTFE coated)
Material of sensor probe	Stainless steel (PTFE coated)
Protection class	III, operation on protective low voltage
Operating principle	inductive
Evaluation	digital
Design	Thread
Design	Solid metal housing, Weld-proof
Product series	INW Full metal
Switching output	pnp, 200 mA, NO
Voltage drop (max.)	1.5 V
Switching distance (SN)	4 mm
Switching frequency	600 Hz
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 67
Connection	Connector, M12, 3-pin, A-coded
Connection cable	VK …
