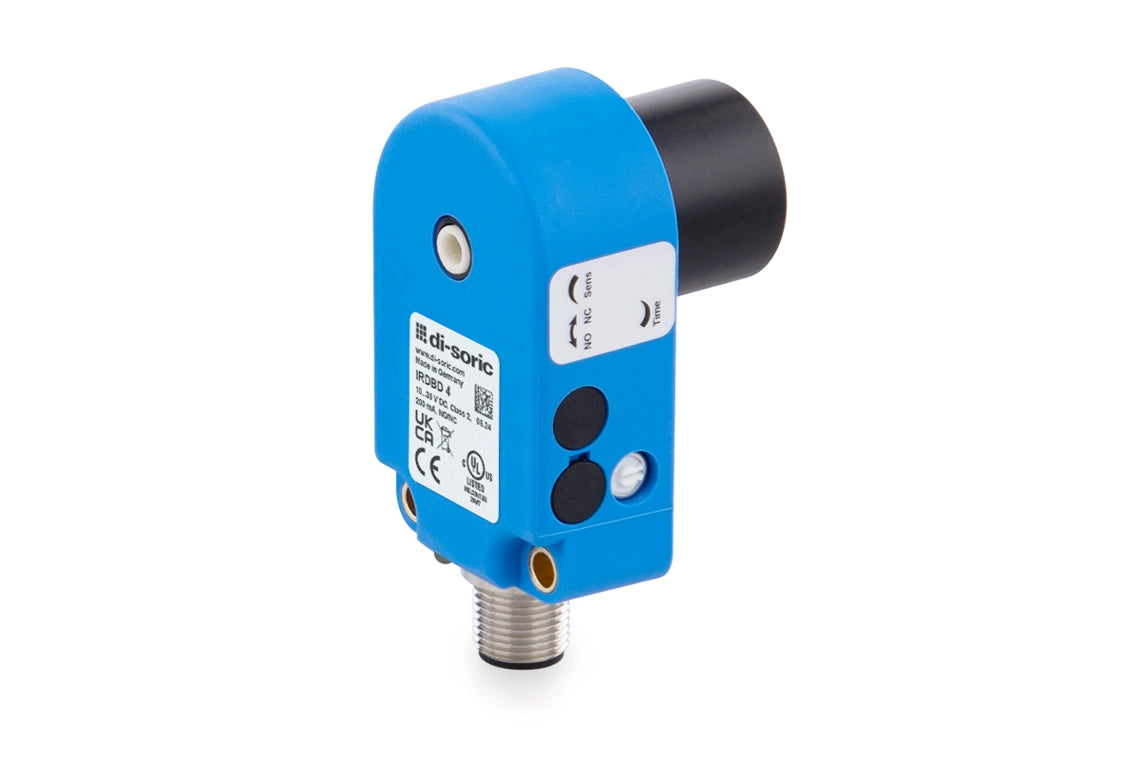

DI-Soric IRDBD 4 NSOK-IBS Inductive wire break sensor IRDB

The inductive wire breakage sensors in the IRDB series are used for detecting wire breaks. The sensors are available in the sizes Ø 4 mm and 6 mm. They can be put into service quickly and have no adjusting elements. These sensors work according to the static operating principle and exhibit a short response time.

• Compact design
• Wear-resistant ceramic insert
• High resolution
• Short response time
• Pulse stretching adjustable
• Dynamic operating principle
• Resistant to dirt
• Metal connector
• High protection type

Service voltage	10 … 35 V DC (Supply Class 2)
No-load current (max.)	20 mA
Insulation voltage endurance	1000 V
Internal diameter	4.0 mm
Assembly distance to metal (min.)	2 mm
Housing material	Plastic
Protection class	III, operation on protective low voltage
Approvals	UL
Operating principle	inductive
Evaluation	Dynamic
Switching output	npn, 200 mA, NO/NC, switchable
Voltage drop (max.)	2 V
Pulse stretching	0.1 … 150 ms adjustable
Resolution	Ø 0.1 mm (Copper wire)
Sensitivity adjustment	Potentiometer
Speed of parts (max.)	35 m/s
Response time	0.20 ms
Release time	0.20 ms
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 67
Connection	Connector, M12, 4-pin, A-coded
Connection cable	VK …
