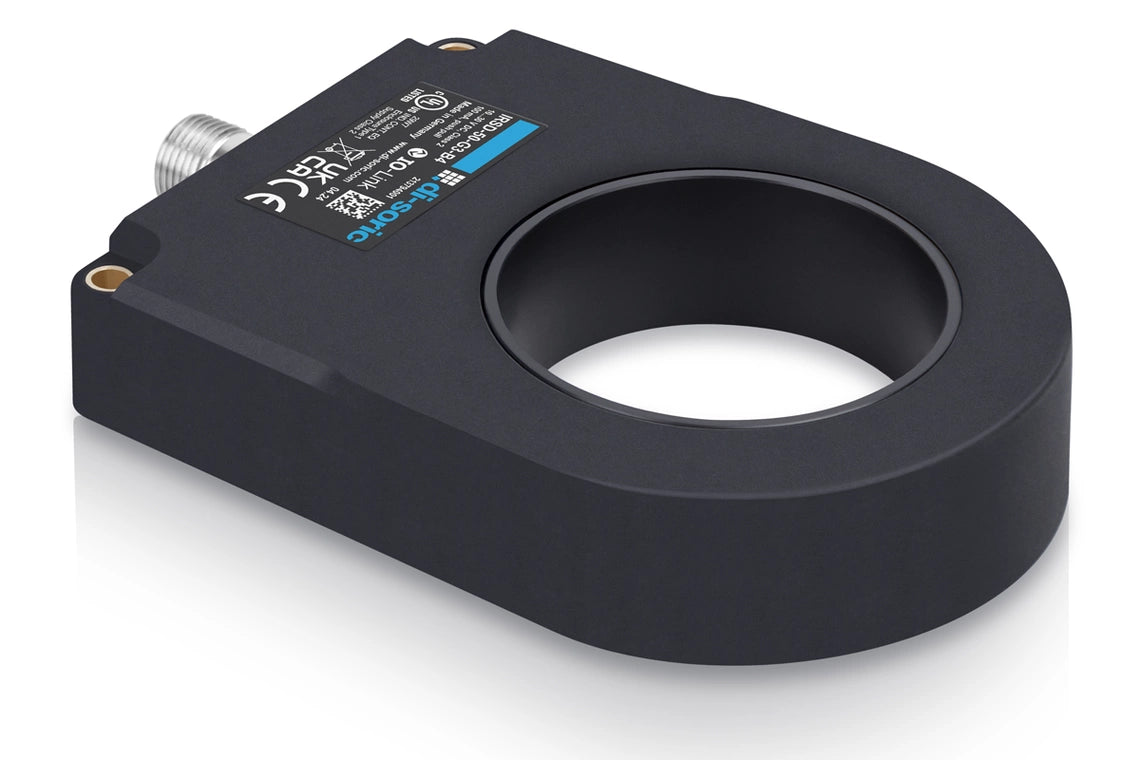

DI-Soric IRSD-50-G3-B4, Inductive ring sensor IRSD, P\n: 213673

The IRSD inductive ring sensors with IO-Link offer extensive configuration options for application-specific integration and detect the smallest metallic parts reliably. They are available in Ø 6.1 mm to 50.1 mm models and are well suited for quickly supplied parts.

• High resolution
• Short response time
• Sensitivity and pulse stretching adjustable
• Resistant to dirt
• Switchable between static and dynamic operating principle
• Metal connector
• High protection type
• Frequency switchable for reducing the installation distance
• Intelligent teach-in process
• Remote Teach

Service voltage	10 … 30 V DC
No-load current (max.)	30 mA
Insulation voltage endurance	500 V
Internal diameter	50.1 mm
Housing material	Plastic (PA)
Material	POM (Ring)
Protection class	III, operation on protective low voltage
Approvals	UL
Operating principle	Dynamic/static switchable (IO-Link / PIN 2)
Switching output	Push-pull/PNP/NPN, 100 mA, NO/NC, switchable
Voltage drop (max.)	2 V
Interface	IO-Link
Pulse stretching	adjustable
Resolution steel ball (high functional reliability)	5 mm (dynamic), 9 mm (static)
Resolution steel ball (smallest object size)	2.5 mm (dynamic), 6 mm (static)
Sensitivity adjustment	IO-Link
Speed of parts (max.)	35 m/s
Speed of parts (min.)	0.1 m/s (dynamic)
Readiness delay (max.)	300 ms
Shock/vibration load	30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation	-25 … +70 °C
Permissible relative humidity	< 95% (+25°C) / < 90% (+40°C), non-condensing (increased humidity affects the sensor nominal resolution)
Protection type	IP 67
Connection	Connector, M12, 4-pin, A-coded
Connection cable	VK …
