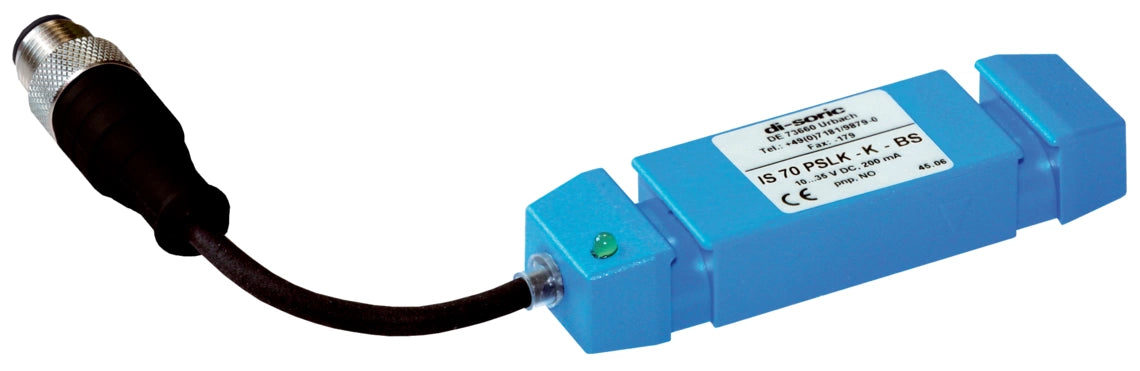

DI-Soric ISDP 70 PSLK-K-BS, Induktiver Schlauchsensor ISDP, P\n: 204182

Our tube sensors with dynamic evaluation have a high resolution and a short response time. Contaminants with metallic content are automatically hidden. The sensors can be assembled afterward and can be fixed with cable ties. They stand out thanks to their low weight, their compact design and the high protection class IP 67. They also have a metallic connecting plug.

• Standard sensitivity
• Dynamic operating principle
• Automatic hiding of metallic contamination
• Compact design
• Low weight
• Cable with plug connector M12
• Slot for quick mounting
• Cable tie contained in scope of delivery

Service voltage	10 … 35 V DC (Supply Class 2)
No-load current (max.)	25 mA
Insulation voltage endurance	500 V
Housing length	70 mm
Housing height	12 mm
Housing width	20 mm
Housing material	Plastic (PC)
Material of cable	Polyurethane
Protection class	III, operation on protective low voltage
Approvals	UL
Operating principle	inductive
Evaluation	Dynamic
Design	Cuboid design
Characteristics	Resistant
Switching output	pnp, 200 mA, NO
Voltage drop (max.)	2 V
Pulse stretching	100 ms
Switching distance	14 mm
Display	LED green - Operation, yellow - Switching output
Speed of parts (max.)	35 m/s
Speed of parts (min.)	0.3 m/s
Response time	0.20 ms
Release time	100 ms
Shock/vibration load	30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 67
Connection	Pigtail, 0.04 m, M12, 3-pin
Connection cable	VK …
