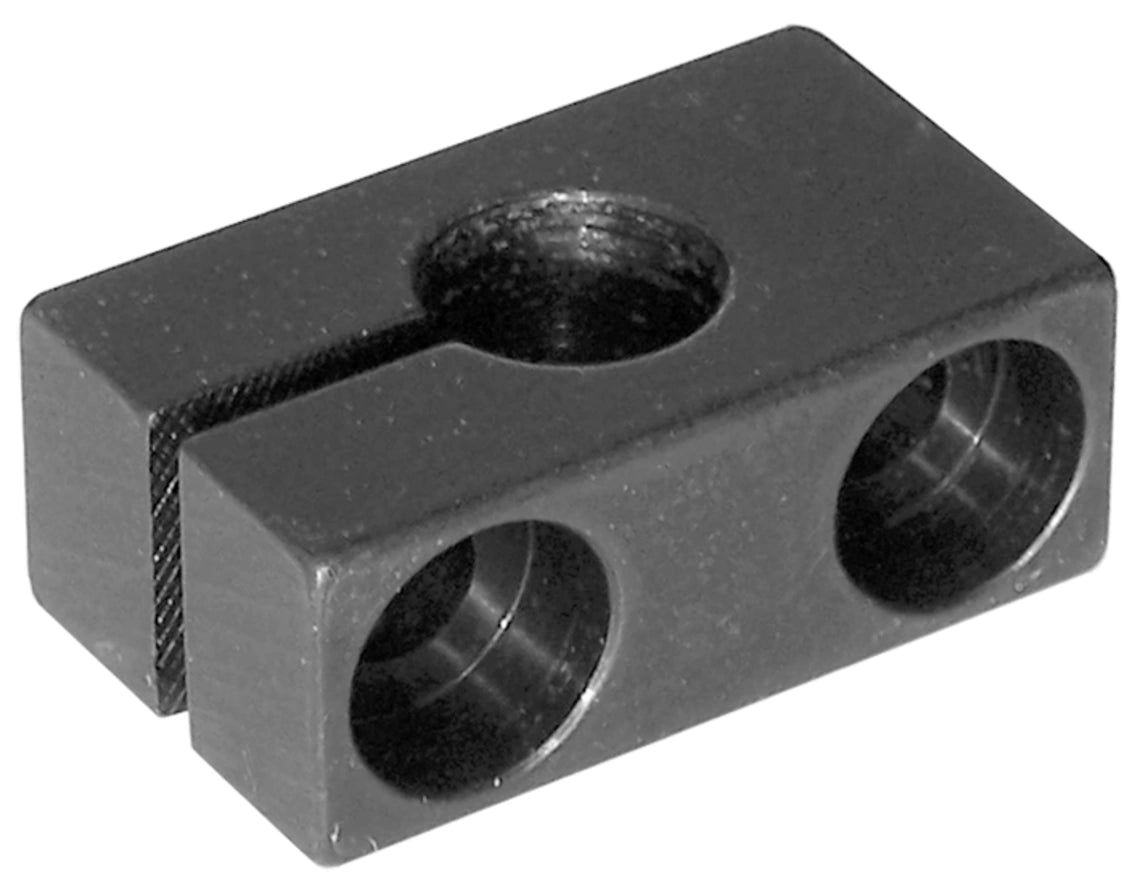

DI-Soric KB 8 Clamping bracket

The comprehensive catalog of assembly systems meets the most common requirements for fixed fastening by means of basic holders, tube, rods, adapter rings, joint arms, angular clamps, and cross connectors.

• Circular clamping
• Robust housing
• Easy to install
• Quick commissioning

Hole spacing	15 mm
Mounting	Hole, Locking screw
Housing dimensions	15 x 10 x 25 mm
Clamping diameter	A: 8.0 mm
Housing material	Aluminum (Black, Anodized)
Component	Terminal block
Design	Cuboid design
To be used for	Sensors Ø 8 mm/ Thread M8
Product series	Z-UBT-KL-MS Assembly system
