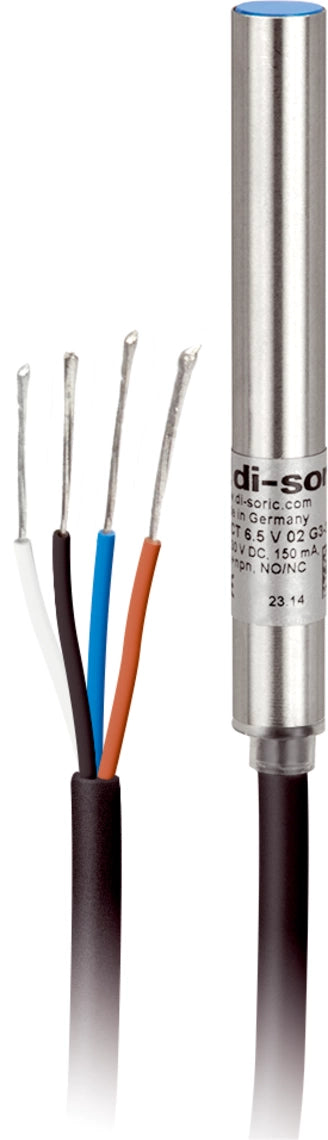

DI-Soric KDCT 6.5 V 02 G3-4 Capacitive proximity sensor KDC

Capacitive proximity sensors in the KDC series are available in stainless steel and plastic housings. They are particularly suited for the detection of liquid, powdery and solid materials, as well as metallic and non-metallic parts. They are available in different sizes from M18 to M30 and Ø 50 mm.

• Remote teach option
• Push-pull output pnp + npn
• Sensitivity adjustable, large operating distance
• Variable hysteresis
• Detection of liquids, powdery and solid materials
• Detecting metal and non-metal parts
• Detection possible even through containers and packaging
• Stainless steel housing

Service voltage	18 … 30 V DC
No-load current (max.)	20 mA
Insulation voltage endurance	500 V
Installation type	Flush
Diameter	Ø 6.5 mm (Diameter)
Housing length	55 mm
Housing material	Stainless steel (V2A 1.4301 / AISI 304)
Material of cable	Polyurethane
Material	PBT (Sensor probe)
Protection class	III, operation on protective low voltage
Operating principle	Capacitive
Evaluation	digital
Design	Cylinder
Switching output	Push-pull, 150 mA, NO/NC, switchable
Voltage drop (max.)	2.4 V
Switching distance (SN)	2 mm (0.1 to 3 mm adjustable)
Standardized measuring plate	8 x 8 mm
Switching hysteresis (max.)	10 %
Sensitivity adjustment	Remote teach
Display	LED yellow - Switching output
Switching frequency	70 Hz
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 65
Connection	Cable, 2.0 m, 4-pin
