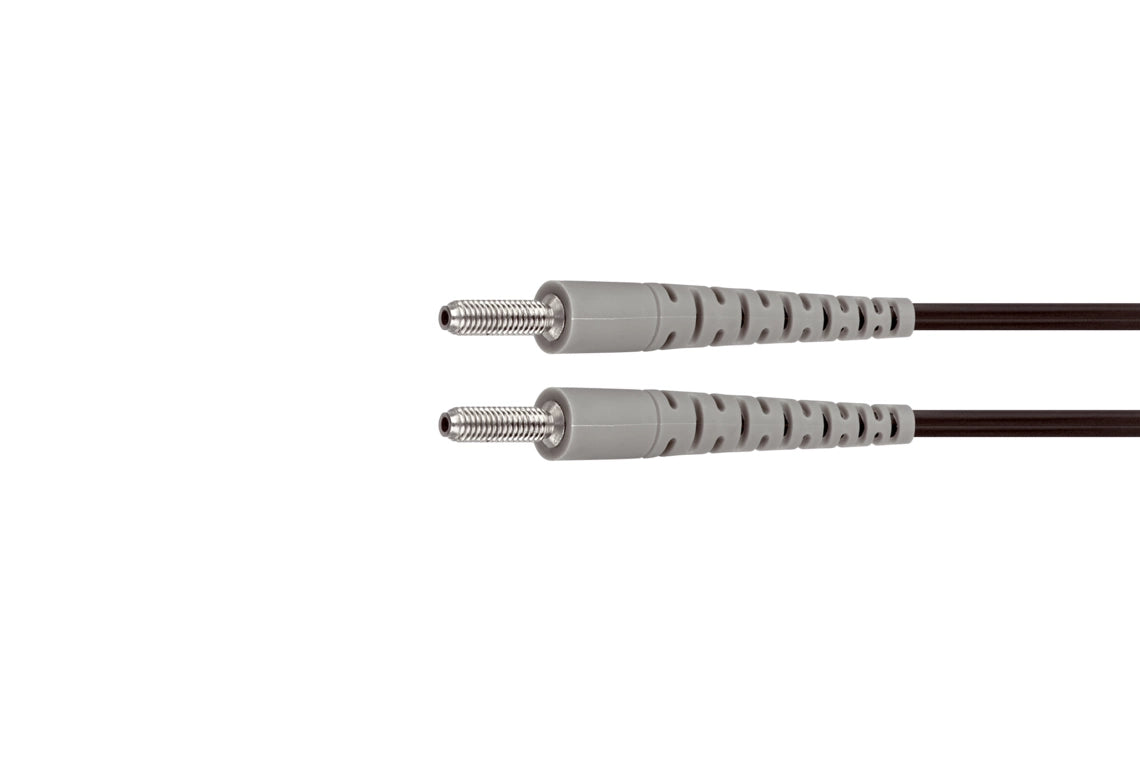

DI-Soric KLE-M3-T2-1 Plastic fiber optics

di-soric offers a wide range of fiber optic products with accessories. The portfolio includes, among others, sensor probes made of stainless steel with bend protection, sensor probes with light bands for range monitoring and fiber optics for detection of the smallest parts.

• Large range
• Cutting knife included

Length	2,000 mm (Can be shortened)
Thread	M3
Light aperture	axial
Bending radius	> 25 mm
Fiber	Ø 1.0 mm
Material of fiber	Plastic
Operating principle	Through-beam sensor
Design	Thread
Characteristics	With cable protection bushing
To be used for	Device series OLV-K Amplifier
Range	1000 mm
Resolution	Ø 0.2 mm
Temperature resistance	-25 … +70 °C
