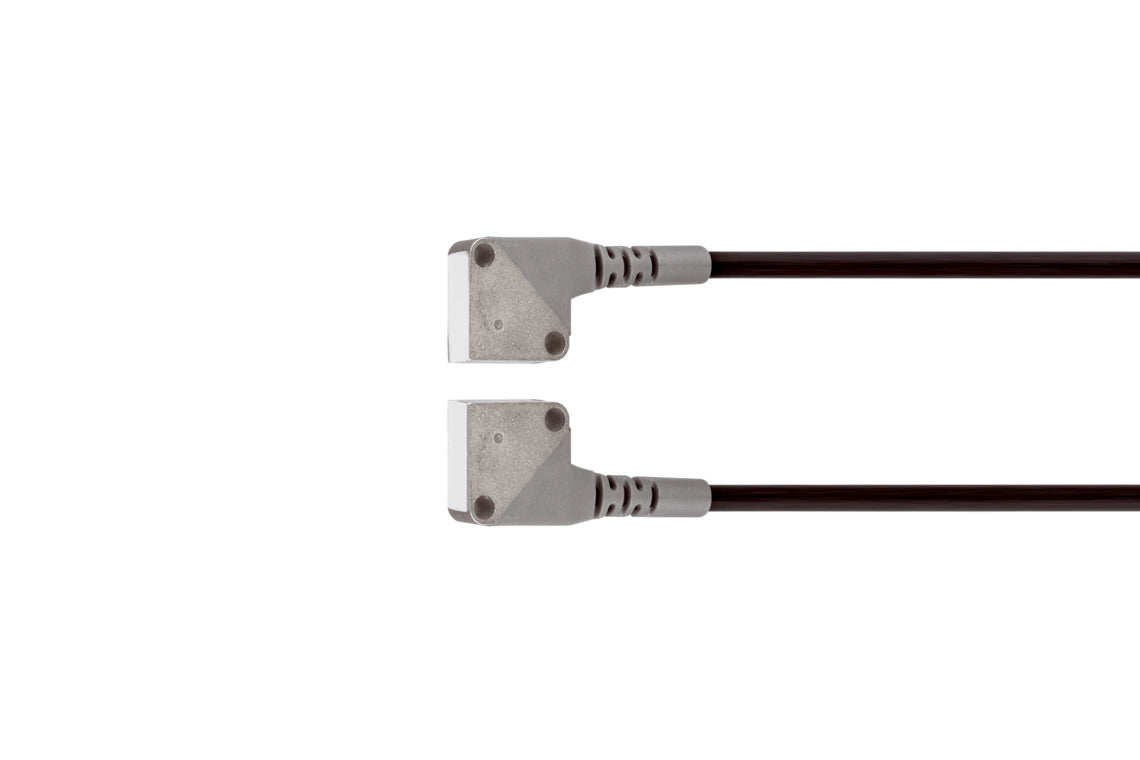

DI-Soric KLEMR-Q10-T1-4 Plastic fiber optics

di-soric offers a wide range of fiber optic products with accessories. The portfolio includes, among others, sensor probes made of stainless steel with bend protection, sensor probes with light bands for range monitoring and fiber optics for detection of the smallest parts.

• 90° deflection
• Area detection without gaps
• Large range
• Accurate detection

Length	1,000 mm (cannot be shortened)
Housing dimensions	10 x 10 x 3.5 mm
Housing length	10 mm
Housing height	10 mm
Housing width	3.5 mm
Light aperture	radial
Bending radius	> 25 mm
Fiber	Ø 0.265 mm (16x)
Cross-section converter	4.24 mm
Material of fiber	Plastic
Operating principle	Through-beam sensor
Design	Cuboid design
Characteristics	With cable protection bushing
To be used for	Device series OLV-K Amplifier
Range	200 mm
Resolution	Ø 0.1 mm
Temperature resistance	-55 … +70 °C
