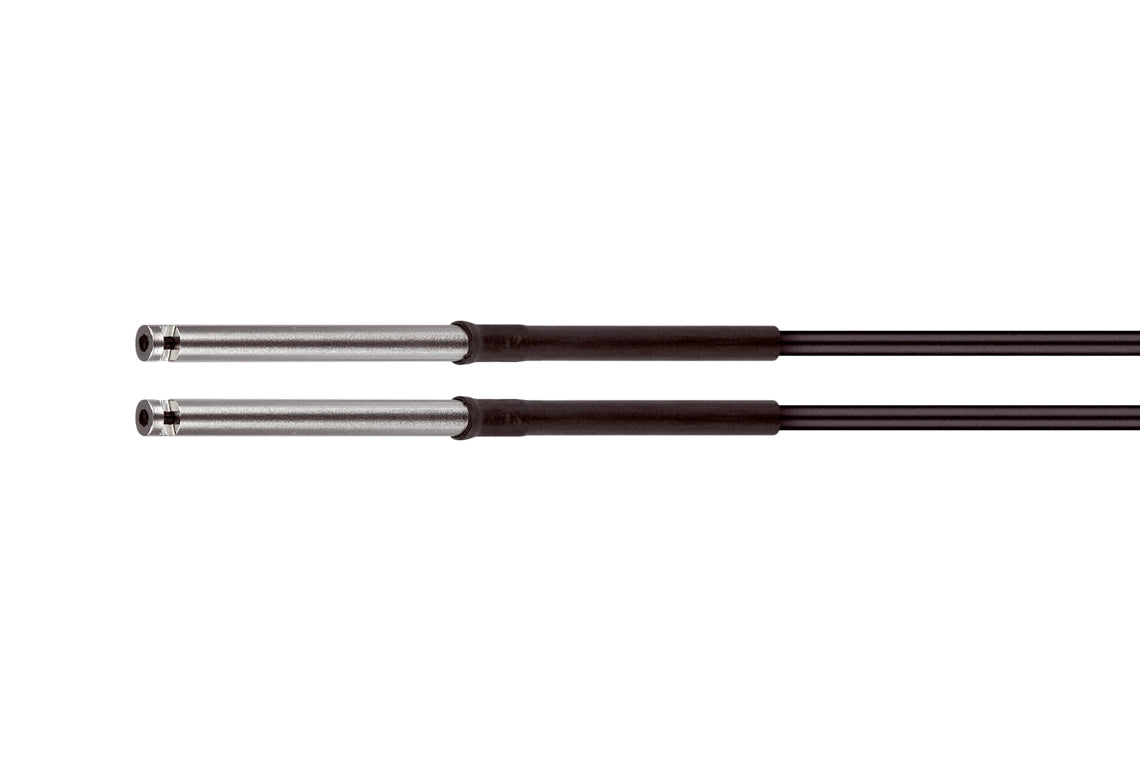

DI-Soric KLER-D3-30-S2-1 Plastic fiber optics

di-soric offers a wide range of fiber optic products with accessories. The portfolio includes, among others, sensor probes made of stainless steel with bend protection, sensor probes with light bands for range monitoring and fiber optics for detection of the smallest parts.

• Low installation depth
• 90° deflection
• Large range

Length	2,000 mm (cannot be shortened)
Diameter	Ø 3.0 mm (Diameter)
Light aperture	radial
Bending radius	> 25 mm
Fiber	Ø 1.0 mm
Material of fiber	Plastic
Operating principle	Through-beam sensor
Design	Cylinder
Characteristics	With S-bushing
To be used for	Device series OLV-K Amplifier
Range	600 mm
Resolution	Ø 0.2 mm
Temperature resistance	-25 … +70 °C
