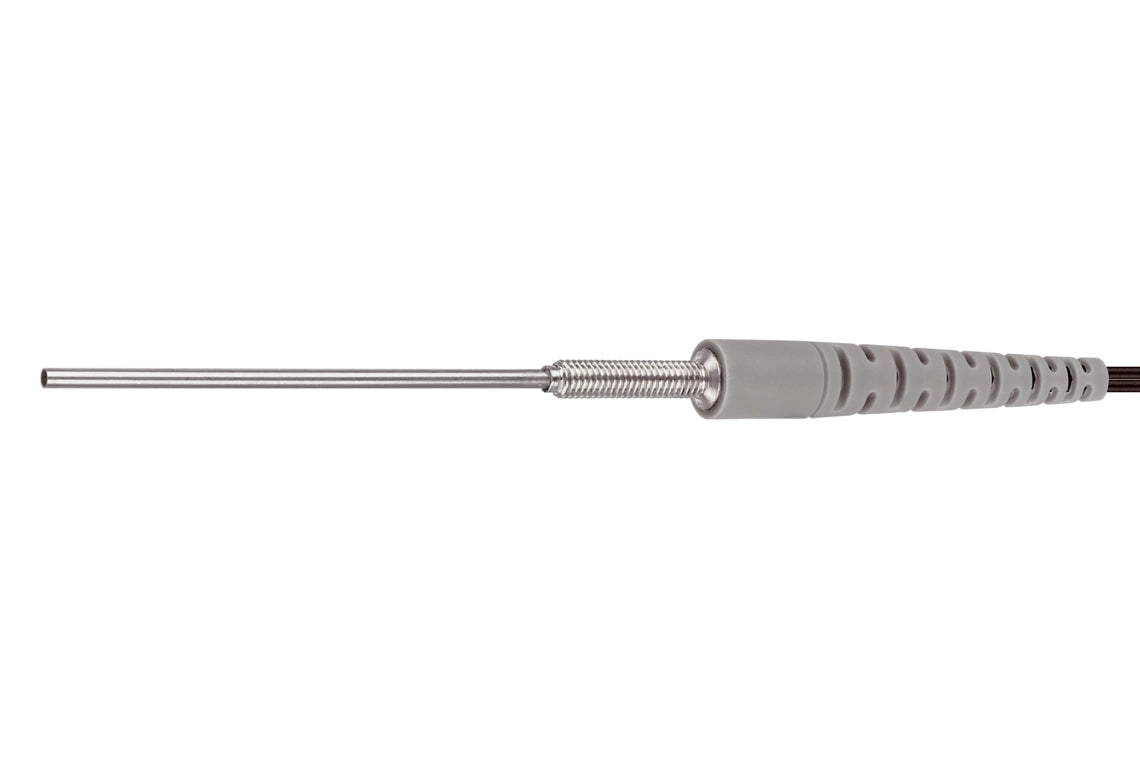

DI-Soric KLT-M3-B40-T2-0.5 Plastic fiber optics

di-soric offers a wide range of fiber optic products with accessories. The portfolio includes, among others, sensor probes made of stainless steel with bend protection, sensor probes with light bands for range monitoring and fiber optics for detection of the smallest parts.

• Flexible sensor probe / R min. > 10 mm
• Accurate detection
• Cutting knife included

Length	2,000 mm (Can be shortened)
Thread	M3
Light aperture	axial, Flexible sensor probe
Bending radius	> 15 mm
Fiber	Parallel, Ø 0.5 mm (2x)
Bending radius of probe	> 10 mm
Material of fiber	Plastic
Operating principle	Diffuse sensor
Design	Thread
Characteristics	With cable protection bushing
To be used for	Device series OLV-K Amplifier
Range	75 mm
Resolution	Ø 0.1 mm
Temperature resistance	-55 … +70 °C
