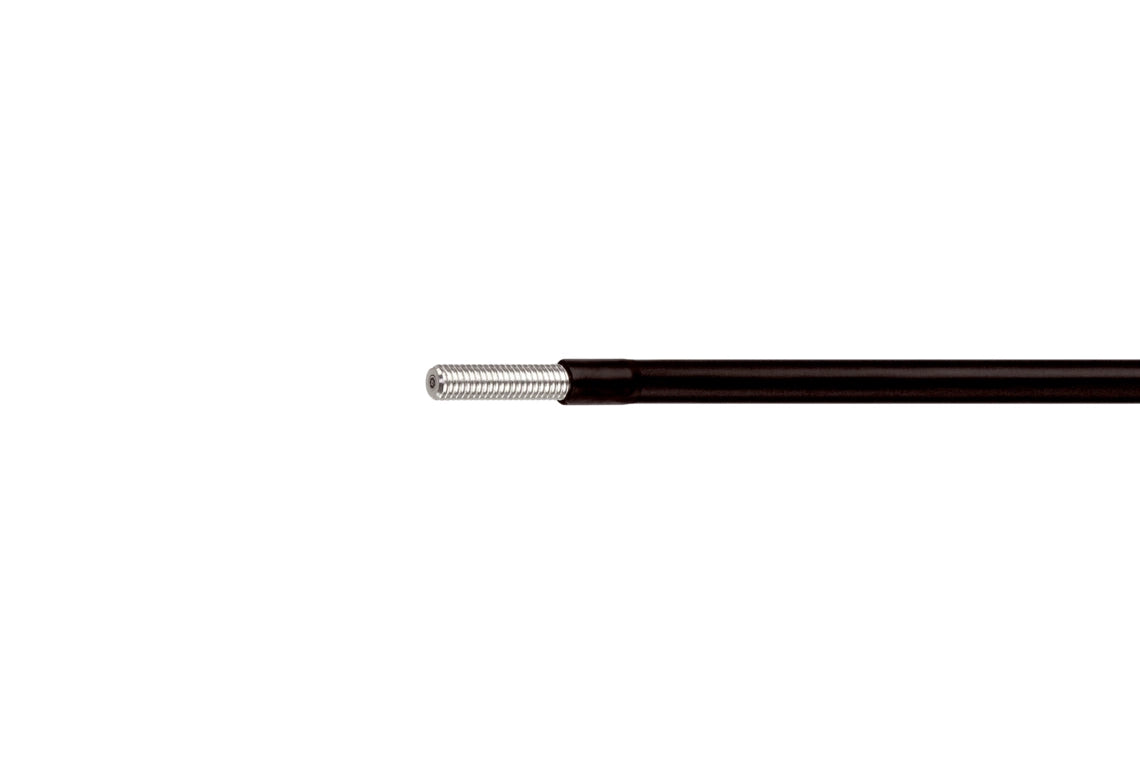

DI-Soric KLT-M3-S0.5-0.25K Plastic fiber optics

di-soric offers a wide range of fiber optic products with accessories. The portfolio includes, among others, sensor probes made of stainless steel with bend protection, sensor probes with light bands for range monitoring and fiber optics for detection of the smallest parts.

• Highly accurate detection
• Optional attachment optics

Length	500 mm (cannot be shortened)
Thread	M3
Light aperture	axial
Bending radius	> 5 mm
Fiber	Coaxial, Ø 0.125 mm (10x), Ø 0.25 mm (1x)
Material of fiber	Plastic
Operating principle	Diffuse sensor
Design	Thread
To be used for	Device series OLV-K Amplifier
Range	40 mm
Resolution	Ø 0.02 mm
Temperature resistance	-55 … +70 °C
