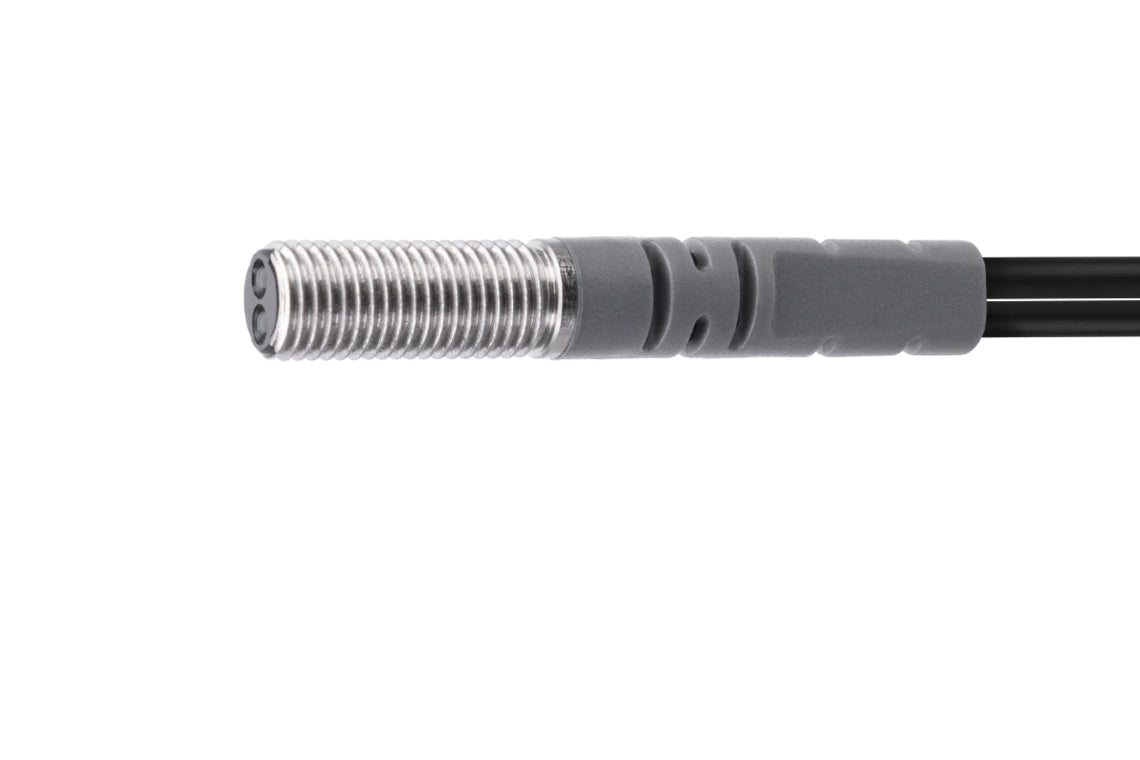

DI-Soric KLT-M6-T2-1.5NB Plastic fiber optics

di-soric offers a wide range of fiber optic products with accessories. The portfolio includes, among others, sensor probes made of stainless steel with bend protection, sensor probes with light bands for range monitoring and fiber optics for detection of the smallest parts.

• Integrated optics for narrow a light beam
• Large range
• Small parts detection
• Fiber optics with kink protection
• Cutting knife included

Length	2,000 mm (Can be shortened)
Thread	M6 x 0.75
Light aperture	axial
Bending radius	> 15 mm
Fiber	Parallel, Ø 0.5 mm (2x)
Material of fiber	Plastic
Operating principle	Diffuse sensor
Design	Thread
Characteristics	With cable protection bushing, Integrated optics
To be used for	Device series OLV-K Amplifier
Light spot size	Ø 4.0 mm (at distance of 15 mm)
Range	400 mm
Resolution	Ø 0.3 mm (at 15 mm distance)
Temperature resistance	-55 … +70 °C
