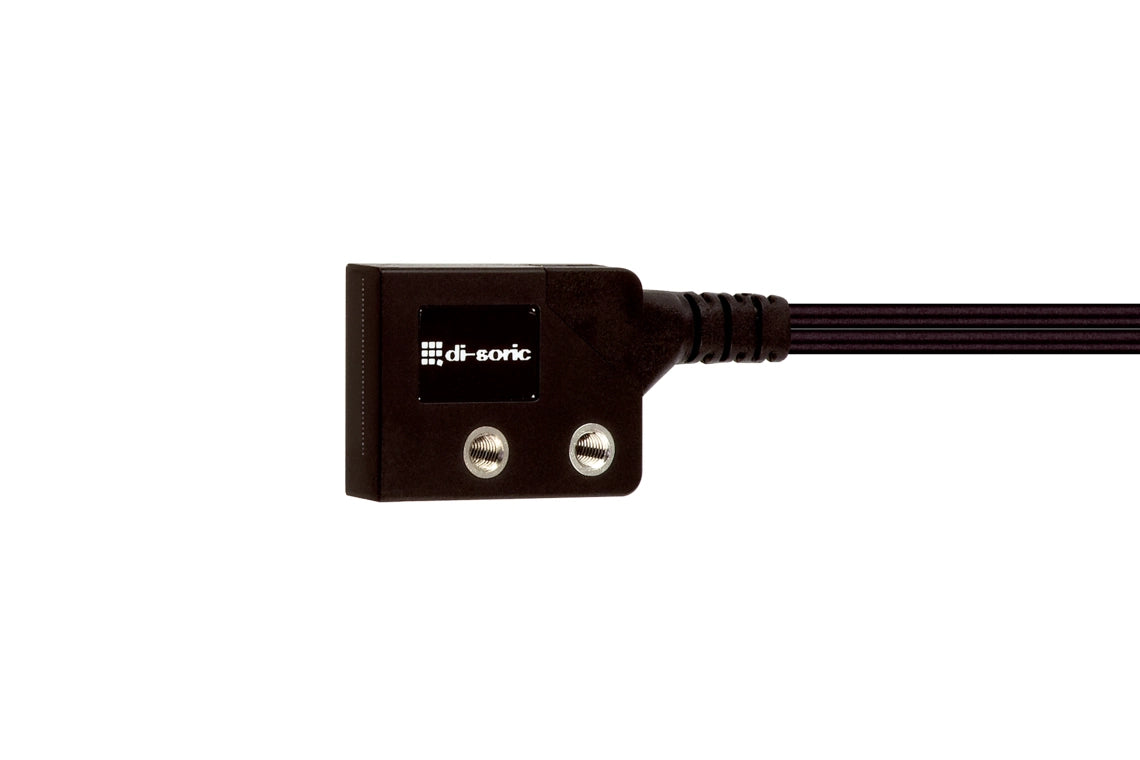

DI-Soric KLTM-Q25K-T1-14 Plastic fiber optics

di-soric offers a wide range of fiber optic products with accessories. The portfolio includes, among others, sensor probes made of stainless steel with bend protection, sensor probes with light bands for range monitoring and fiber optics for detection of the smallest parts.

• Area detection
• Large range

Length	1,000 mm (cannot be shortened)
Housing dimensions	19 x 25 x 6 mm
Housing length	25 mm
Housing height	19 mm
Housing width	6 mm
Light aperture	axial
Bending radius	> 5 mm
Fiber	Parallel, Ø 0.265 mm (16x)
Cross-section converter	14.5 mm
Material of fiber	Plastic
Operating principle	Diffuse sensor
Design	Cuboid design
Characteristics	With cable protection bushing
To be used for	Device series OLV-K Amplifier
Range	2400 mm
Resolution	Ø 0.5 mm
Temperature resistance	-55 … +70 °C
