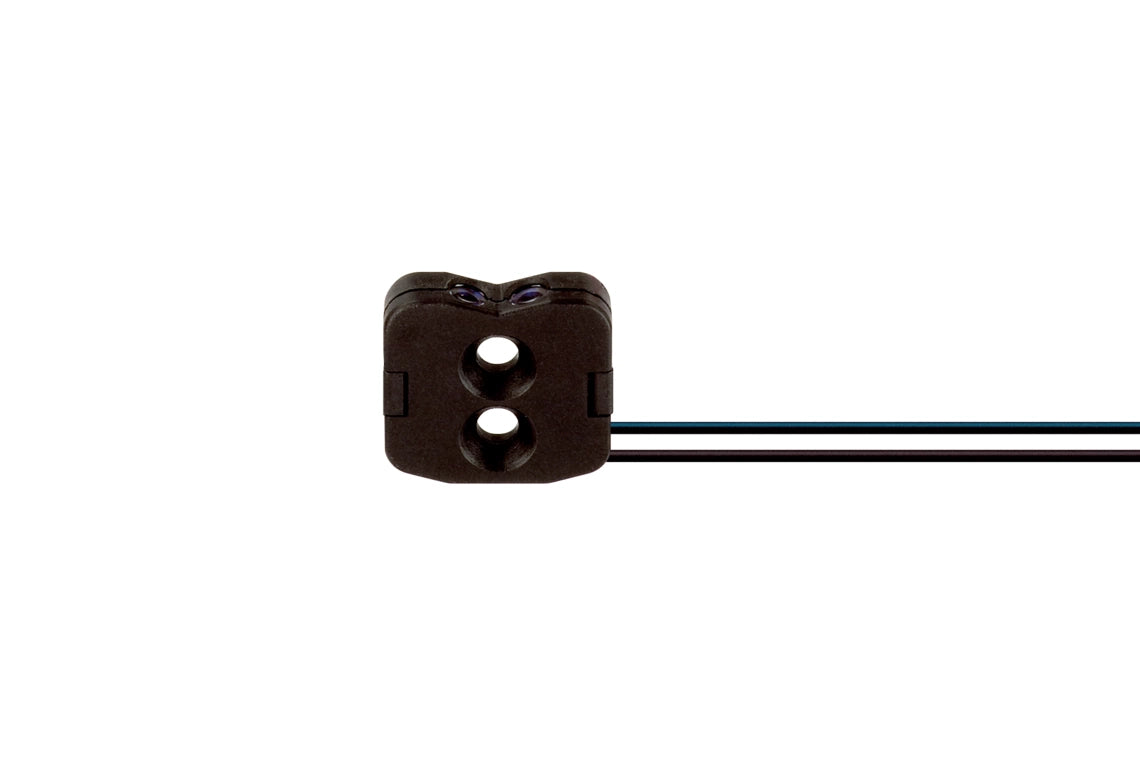

DI-Soric KLTVR-Q18-2-10 Plastic fiber optics

di-soric offers a wide range of fiber optic products with accessories. The portfolio includes, among others, sensor probes made of stainless steel with bend protection, sensor probes with light bands for range monitoring and fiber optics for detection of the smallest parts.

• Fixed-focus detection
• 90° deflection
• Low installation depth
• Cutting knife included

Length	2,000 mm (Can be shortened)
Housing dimensions	18 x 17 x 5 mm
Housing length	17 mm
Housing height	18 mm
Housing width	5 mm
Light aperture	radial
Bending radius	> 1 mm
Fiber	Parallel, Ø 0.5 mm (2x)
Material of fiber	Plastic
Operating principle	Diffuse sensor
Design	Cuboid design
To be used for	Device series OLV-K Amplifier
Range	5 … 10 mm
Resolution	Ø 0.1 mm
Temperature resistance	-40 … +70 °C
