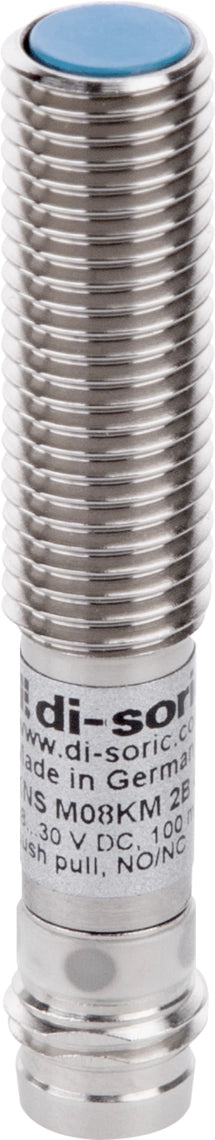

DI-Soric KNS M08KM 2B G3-T3 Capacitive proximity sensor KNS

Our capacitive proximity sensors detect liquid, powdery and solid materials precisely and reliably. They are equally suitable for the detection of metallic and non-metallic parts. Parts can also be detected through container walls or packaging. The sensitivity and NO/NC switching is adjusted by way of multiturn potentiometers.

• Large operating distance
• Detection of liquids, powdery and solid materials
• Detecting metal and non-metal parts
• Detection possible even through containers and packaging
• NO/NC, switchable via IO-Link
• Push-pull output pnp + npn
• Robust nickel-plated brass housing
• Short design

Service voltage	18 … 30 V DC
No-load current (max.)	15 mA
Insulation voltage endurance	500 V
Installation type	Flush
Thread	M8 x 1
Housing length	44.8 mm
Housing material	Brass (nickel-plated)
Weight	6 g
Protection class	III, operation on protective low voltage
Operating principle	Capacitive
Design	Thread
Operation modes	STANDARD, HIGH RESOLUTION, SPEED
Scope of delivery	2 x M8 nuts
Switching output	Push-pull, 100 mA, NO/NC, switchable via IO-Link
Voltage drop (max.)	2 V
Interface	IO-Link
Switching distance (SN)	2 mm (0.2 to 3 mm adjustable via IO-Link)
Standardized measuring plate	8 x 8 mm
Switching hysteresis (max.)	< 15 %
Sensitivity adjustment	IO-Link
Display	LED yellow - Output signal
Switching frequency (factory setting)	100 Hz (STANDARD)
Switching frequency (STANDARD)	100 Hz
Switching frequency (HIGH RESOLUTION)	10 Hz
Switching frequency (SPEED)	200 Hz
Readiness delay (max.)	300 ms
Shock/vibration load	30 g, 10 … 55 Hz / 0.5 mm
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 65 / IP 67
Connection	Connector, M8, 3-pin, A-coded
