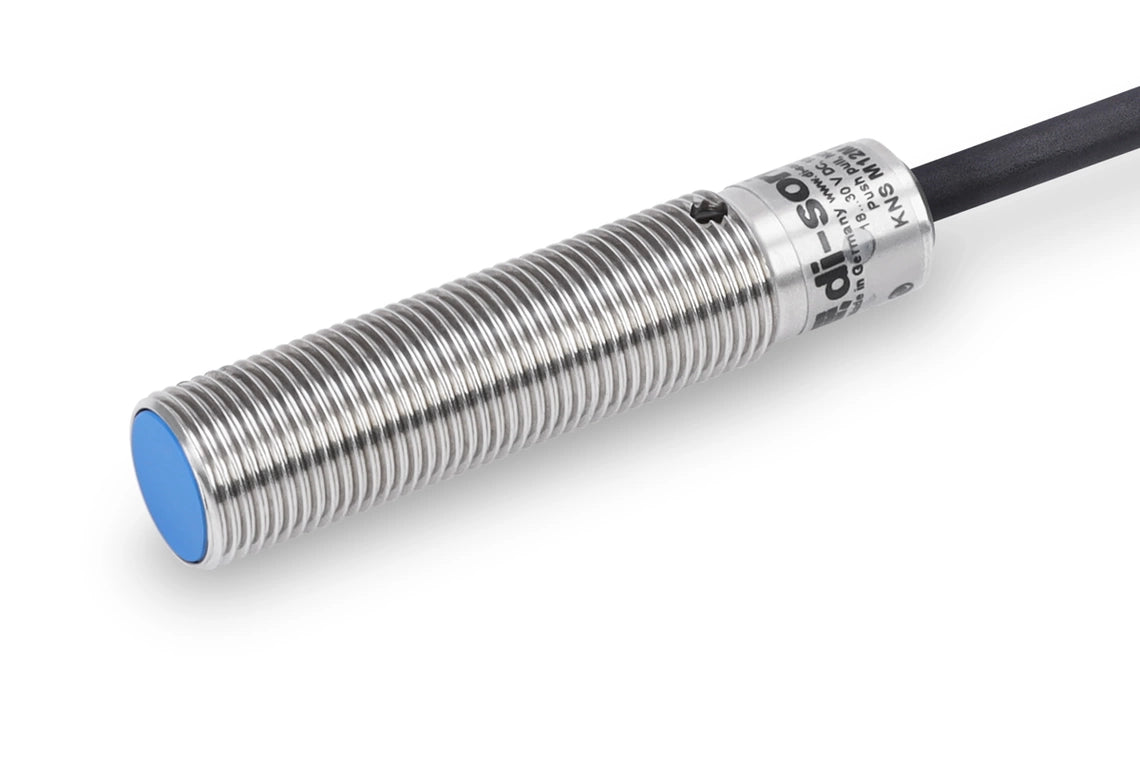

DI-Soric KNS M12M 04B G3-2R Capacitive proximity sensor KNS

Our capacitive proximity sensors detect liquid, powdery and solid materials precisely and reliably. They are equally suitable for the detection of metallic and non-metallic parts. Parts can also be detected through container walls or packaging. The sensitivity and NO/NC switching is adjusted by way of multiturn potentiometers.

• Large operating distance
• Detection of liquids, powdery and solid materials
• Detecting metal and non-metal parts
• Detection possible even through containers and packaging
• Sensitivity is adjustable via multi-turn potentiometer
• NO/NC, switchable
• Push-pull output pnp + npn
• Stainless steel housing

Service voltage	18 … 30 V DC
No-load current (max.)	15 mA (24 V DC)
Insulation voltage endurance	500 V
Installation type	Flush
Thread	M12 x 1
Housing length	55 mm
Housing material	Stainless steel
Material	PBT (Sensor probe)
Protection class	III, operation on protective low voltage
Operating principle	Capacitive
Design	Thread
Scope of delivery	Setting tool
Switching output	Push-pull, 100 mA, NO/NC, switchable
Voltage drop (max.)	2 V
Switching distance (SN)	4 mm (0.1 to 8 mm adjustable)
Standardized measuring plate	12 x 12 x 1 mm
Switching hysteresis (max.)	15 %
Sensitivity adjustment	Potentiometer (12-turn)
Display	LED yellow - Output signal
Switching frequency	100 Hz
Readiness delay (max.)	300 ms
Shock/vibration load	30 g, 10 … 55 Hz / 0.5 mm
Ambient temperature during operation	-20 … +70 °C
Protection type	IP 65 / IP 67
Connection	Cable, 2.0 m, 3-pin
