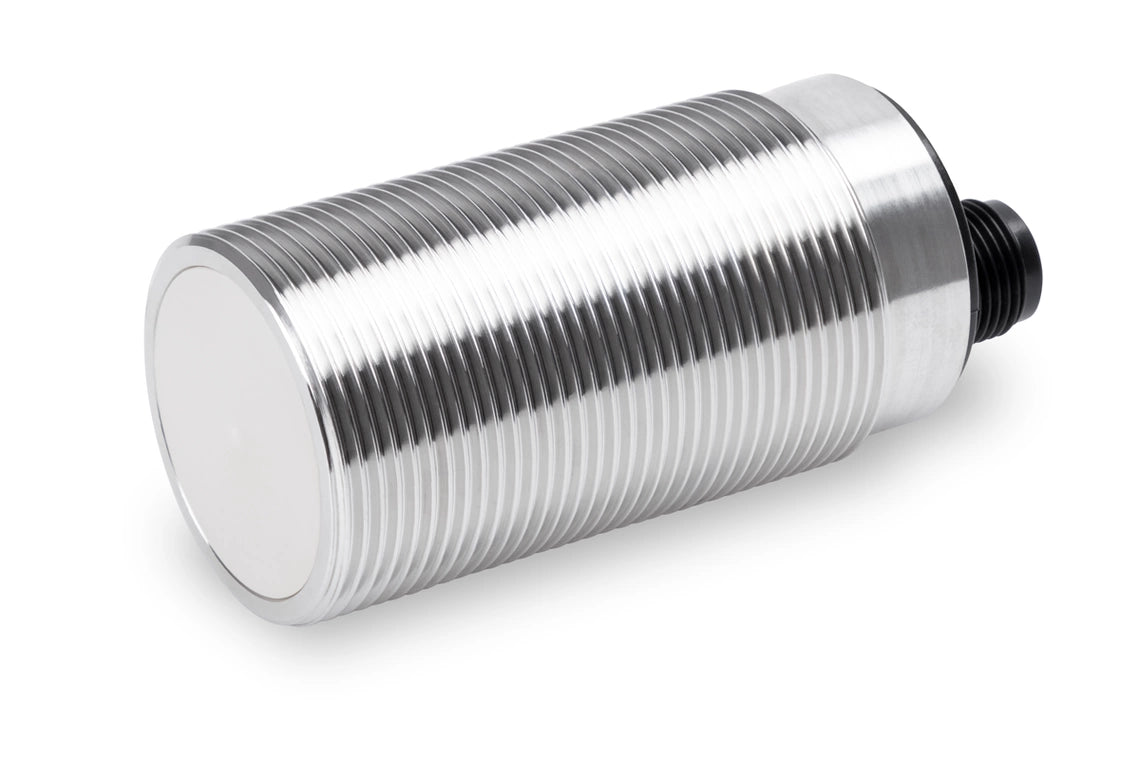

DI-Soric KNS-M32/74V-B16G3-B4 Capacitive proximity sensor KNS

Our capacitive proximity sensors detect liquid, powdery and solid materials precisely and reliably. They are equally suitable for the detection of metallic and non-metallic parts. Parts can also be detected through container walls or packaging. The sensitivity and NO/NC switching is adjusted by way of multiturn potentiometers.

• Resists static discharges up to 40 kV
• Large operating distance
• Increased voltage range of 10 ... 40 V DC
• Temperature-resistant sensor surface up to 120°C
• Metal casing

Service voltage	10 … 40 V DC
No-load current (max.)	< 20 mA
Installation type	Flush
Thread	M32 x 1,5
Housing length	61 mm
Housing material	Stainless steel
Weight	200 g
Tightening torque	30 Nm (max.)
Protection class	III, operation on protective low voltage
Operating principle	Capacitive
Design	Thread
Scope of delivery	Sensor, 2 x Mutter M32, Setting tool
Switching output	Push-pull, 200 mA, NO/NC
Voltage drop (max.)	1 V (200 mA)
Switching distance (SN)	16 mm (0 … 16 mm adjustable)
Standardized measuring plate	24 x 24 x 1 mm
Switching hysteresis (max.)	< 8 %
Switching frequency (factory setting)	50 Hz
Ambient temperature during operation	-30 … +85 °C
Ambient temperature storage	-40 … +85 °C
Ambient humidity operation	35 … 95 %
Ambient humidity storage	35 … 95 %
Protection type	IP 67
Connection	Connector, M12, 4-pin, A-coded
