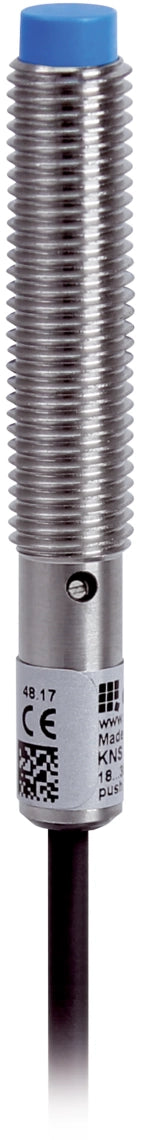

DI-Soric KNS M8M 03N G3-2R Capacitive proximity sensor KNS

Our capacitive proximity sensors detect liquid, powdery and solid materials precisely and reliably. They are equally suitable for the detection of metallic and non-metallic parts. Parts can also be detected through container walls or packaging. The sensitivity and NO/NC switching is adjusted by way of multiturn potentiometers.

• Large operating distance
• Detection of liquids, powdery and solid materials
• Detecting metal and non-metal parts
• Detection possible even through containers and packaging
• Sensitivity is adjustable via multi-turn potentiometer
• NO/NC, switchable
• Push-pull output pnp + npn
• Stainless steel housing

Service voltage	18 … 30 V DC
No-load current (max.)	15 mA (24 V DC)
Insulation voltage endurance	500 V
Installation type	non-flush
Thread	M8 x 1
Housing length	51.5 mm
Housing material	Stainless steel
Material	PPT (Sensor probe)
Weight	35 g
Protection class	III, operation on protective low voltage
Operating principle	Capacitive
Design	Thread
Scope of delivery	Setting tool
Switching output	Push-pull, 100 mA, NO/NC
Voltage drop (max.)	2.4 V
Switching distance (SN)	3 mm (0.1 to 4 mm adjustable)
Standardized measuring plate	8 x 8 x 1 mm
Switching hysteresis (max.)	15 %
Sensitivity adjustment	Potentiometer (11-turn)
Display	LED yellow - Output signal
Switching frequency	100 Hz
Readiness delay (max.)	300 ms
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 65 / IP 67
Connection	Cable, 2.0 m, 3-pin
