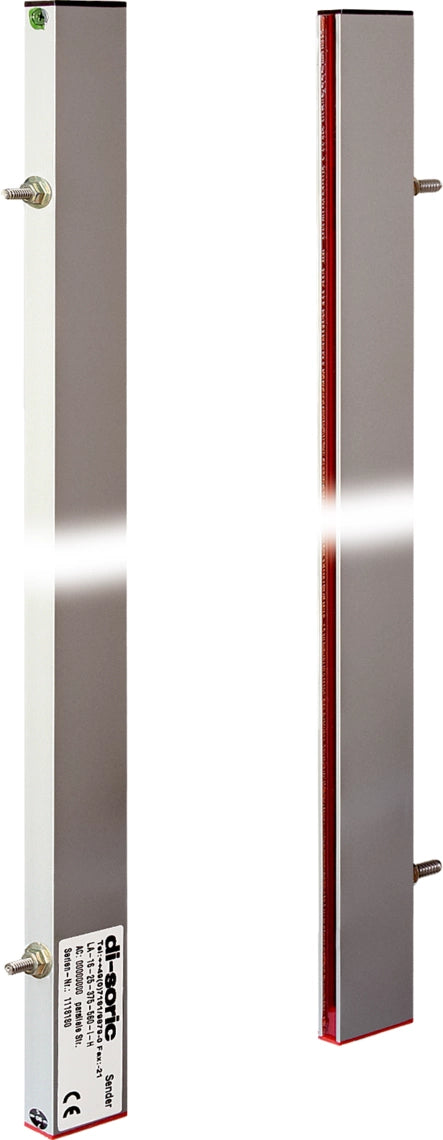

DI-Soric LA-D 24-25-575-760 I-D Switching light curtain LA

The area of application of the LA switching light curtains is object detection. The devices were designed in a cost-optimized manner for simple applications. Slim construction, integrated switching outputs and quick commissioning are their distinguishing features.

• Diagonal beam evaluation
• Integrated evaluation electronics
• Switching output
• Fault alarm output
• Compact design
• Aluminum housing
• Easy to install

Service voltage	20.4 … 28.8 V DC
Power consumption	8 W
Assembly	Threaded bolt (2)
Profile cross section	12 x 24 mm
Housing height	24 mm
Housing width	12 mm
Profile length	760 mm
Housing material	Aluminum (silver, Anodized)
Protection class	III, operation on protective low voltage
EMC directives	EN 61000-6-3:2001 / EN 61000-6-1:2001
Evaluation	diagonal
Evaluation electronics	integrated
Output function	Dark switching
Switching output	pnp, 200 mA, NO, short-circuit-proof
Light source	LED
Color	Infrared
Wavelength	880 nm
Beam evaluation	via integrated evaluation electronics
Beam separation	25 mm
Number of beams	24
Monitoring height	575 mm
Range	700 … 4000 mm (factory setting)
Display	LED (Service voltage / output stage, error (alarm))
Cycle time per light beam	1 ms
Total cycle time	Anzahl Lichtstrahlen x 1 ms + 4 ms
Basic processing time	4 ms
Ambient temperature during operation	-10 … +45 °C
Protection type	IP 54 (IP 65 optional)
Connection	Cable, 4.0 m (with ferrule)
