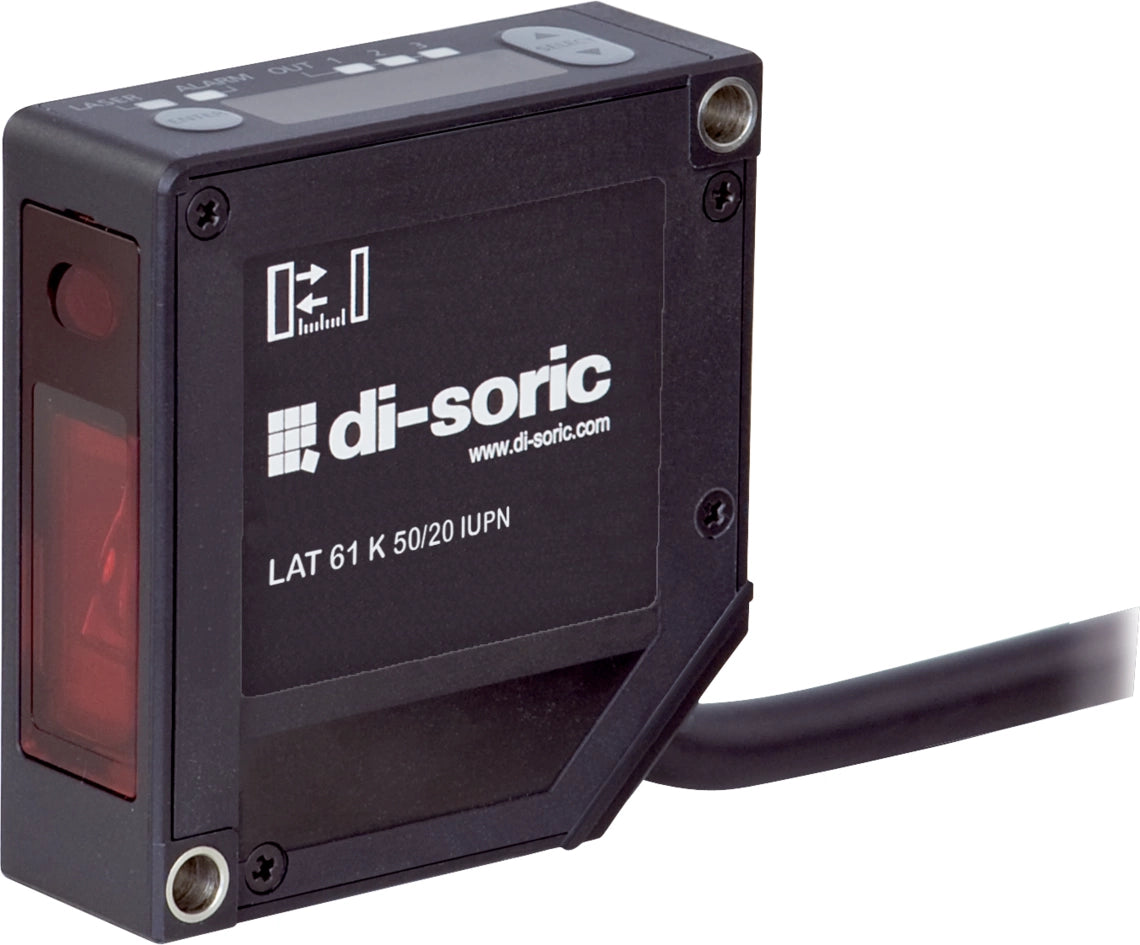

DI-Soric LAT 61 K 50/20 IUPN Optical distance sensor LAT 61

Highly precise, quick distance measurements in a range up to 180 mm are the area of application for the LAT-61 optical distance sensor. Its small and precise laser spot makes it possible to determine distances with a resolution into the micrometer range. The integrated display is used to display measured values and configure the sensor.

• High precision
• Fast distance measurement
• Measured values on display
• 2 analog and 3 digital outputs
• Timing/ and multifunction input
• Light design for mounting on moving parts
• Measured values on display

Service voltage	21.6 … 26.4 V DC
No-load current (max.)	100 mA
Insulation voltage endurance	250 V
Housing dimensions	60 x 57 x 20 mm
Housing length	57 mm
Housing height	60 mm
Housing width	20.4 mm
Housing material	Plastic
Material window / optics	Plastic
Weight	320 g
Protection class	III, operation on protective low voltage
Design	Cuboid design
Switching output	pnp/npn (3x), 50 mA, NO/NC, configurable
Voltage drop (max.)	2.8 V
Analog output	0 … 10 V, 4 … 20 mA
Light source	Laser
Laser class	CLASS 2 LASER PRODUCT, 2 (IEC 60825-1)
Color	Red
Wavelength	665 nm
Light spot size	0.5 x 1.0 mm
Measuring range	40 … 60 mm
Resolution	1.5 µm (Median value 1024)
Linearity error	± 0.02 mm (Median value 1024)
Sensitivity adjustment	Keypad
Display	LED (Output status) green - Status, yellow - Switching output, Red - Signal weak, orange - Signal weak
Measuring frequency	500 … 5000 Hz
Ambient temperature during operation	-10 … +45 °C
Temperature drift	0.08 %/K
Vibration/shock resistance	10 … 500 Hz / 1.5 mm / 10 G
Protection type	IP 67
Connection	Cable, 5.0 m, 10-pin (Shielded, flying leads)
