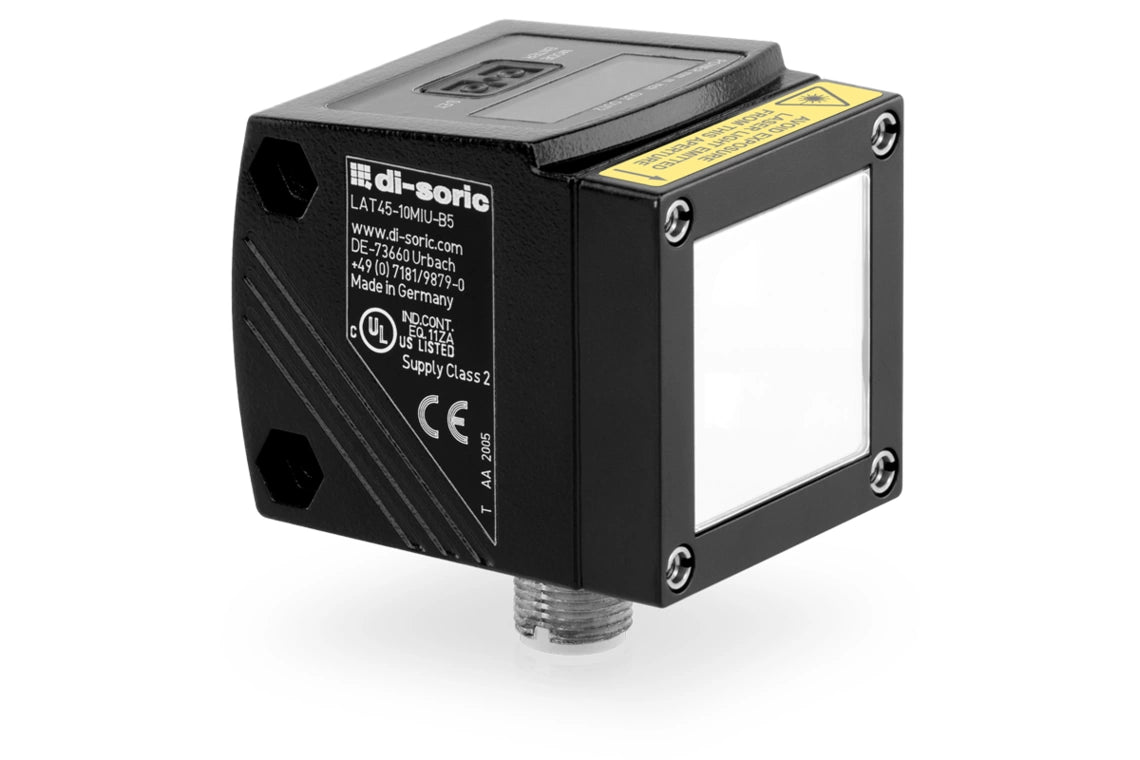

DI-Soric LAT45-10MIU-B5 Optical distance sensor LAT 45

The LAT-45 features a long range of up to 10 m. The sensor is equally well suited for measuring and switching applications. The LAT-45 is operated alternatively via keypad or IO-Link, its easily legible display is used to display measured values. A good color and surface independence makes distance measurement possible on many surfaces.

• IO-Link
• Long range
• Very good color and surface independence
• Red-light laser for simple alignment
• Measured values on display
• Easy to operate
• Robust metal housing

Service voltage	18 … 30 V DC (Supply Class 2)
No-load current (max.)	150 mA
Housing dimensions	45 x 52 x 42 mm
Housing length	52 mm
Housing height	45 mm
Housing width	42 mm
Housing material	Die-cast zinc (Black, painted)
Material window / optics	Glass
Weight	309 g
Protection class	III, operation on protective low voltage
Approvals	UL
Design	Cuboid design
Switching output	pnp (2x), 200 mA, NO/NC, configurable
Analog output	0 … 10 V, 4 … 20 mA
Light source	Laser
Laser class	CLASS 2 LASER PRODUCT, (IEC 60825-1:2014 / EN 60825-1:2014)
Color	Red (Pp < 4 mW t = 1.3 ns)
Background suppression	10000 … 100000 mm
Light spot size	Ø 15 mm (at distance of 10 m)
Ambient light immunity	100 kLx
Measuring range	200 … 10000 mm (90 % remission)
Resolution	1.0 mm (90% remission, measuring frequency 15 Hz)
Reproducibility	4.5 ... 50 mm (90% remission, measuring frequency 15 Hz)
Linearity error	± 15 mm (90% remission, measuring frequency 15 Hz)
Sensitivity adjustment	Keypad
Display	LED green - Status, yellow - Switching output
Measuring frequency	1.0 … 33 Hz
Switching frequency	0.3 Hz … 11 Hz
Ambient temperature during operation	-10 … +60 °C
Protection type	IP 67
Connection	Connector, M12, 5-pin
Connection cable	VK … /5
