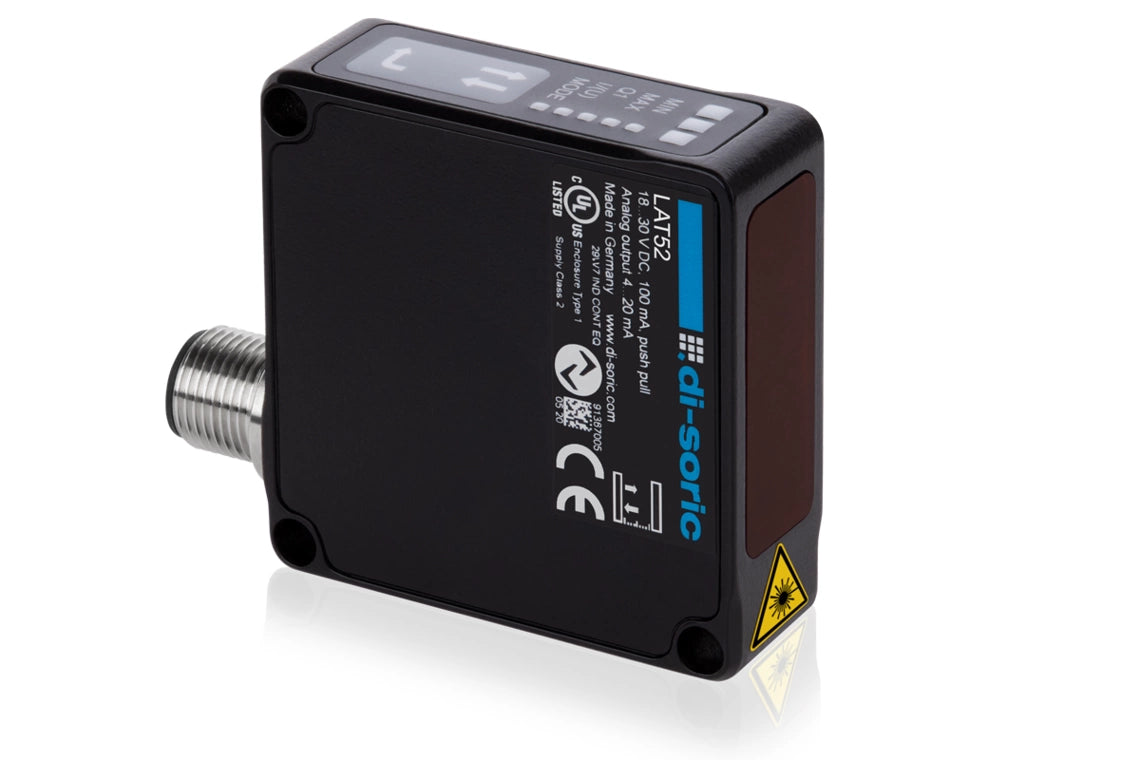

DI-Soric LAT52-80IU-B5 Optical distance sensor LAT 52

The LAT-52 is a compact, universal distance sensor with a metallic housing for medium distances up to 500 mm. It is fast and is used in case of applications in the mm and sub-mm range. The LAT-52 is available in 3 different measuring ranges. The variant with a measuring range of 30 mm to 80 mm has a resolution of 0.01 mm. The small laser light spot enables the detection of small changes in distance. The LAT-52 is alternatively operated via keypad or IO-Link, and laser protection class 1 ensures complete eye safety.

• IO-Link
• Precisely linearized object detection
• Large detection range
• 3 operating modes as an IO-Link parameter
• Laser class 1
• Red-light laser, with small laser spot
• Easy to operate
• Robust metal housing

Service voltage	18 … 30 V DC (Supply Class 2)
No-load current (max.)	60 mA
Insulation voltage endurance	500 V
Housing dimensions	51 x 51 x 17 mm
Housing length	51 mm
Housing height	51 mm
Housing width	17 mm
Housing material	Die-cast zinc (Black, powder-coated)
Material window / optics	Plastic
Weight	102 g
Protection class	III, operation on protective low voltage
Approvals	UL
Design	Cuboid design
Operation modes	Standard operating modes: General applications, Speed: Quick measurement (measuring rate 1,200 Hz), Power: For dark objects
Switching output	Push-pull (1x), 100 mA, NO/NC
Voltage drop (max.)	2 V
Analog output	0 … 10 V, 4 … 20 mA
Light source	Laser
Laser class	CLASS 1 LASER PRODUCT, (IEC 60825-1:2014 / EN 60825-1:2014)
Color	Red
Wavelength	650 nm (Pp < 0.65 mW t = 4 µs)
Light spot size	Ø 0.5 mm
Measuring range	30 … 80 mm (6 to 90 % remission)
Resolution	0.01 mm (Mode: Standard, median value 16)
Reproducibility	0.02 mm, Mode: Standard, median value 16
Linearity error	± 0.05 mm (Mode: Standard, median value 16)
Sensitivity adjustment	Keypad
Display	LED green - Status, yellow - Switching output, Red - Signal weak
Measuring frequency	1000 Hz, (max. 1200 Hz in Speed sensor mode without filter)
Readiness delay (max.)	300 ms
Shock/vibration load	30 g, 10 … 55 Hz / 0.5 mm
Ambient temperature during operation	0 … +50 °C
Temperature drift	0.04 %/K
Protection type	IP 67
Connection	Connector, M12, 5-pin
Connection cable	VK … /5
