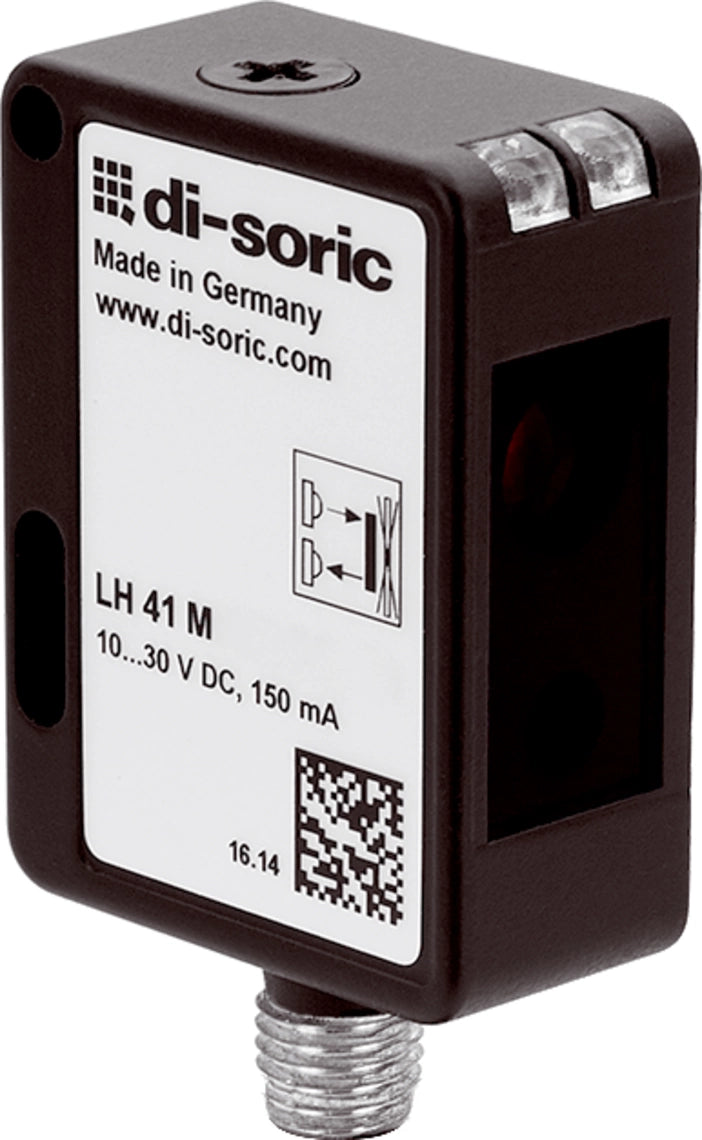

DI-Soric LH 41 M 350 G4L-T4 Retroreflective diffuse sensor with background suppression O-40 Metal

Background suppression sensors are efficient sensors for detecting objects in which transmitters and receivers are located in one housing. They evaluate the position of objects. Objects that are located behind the set switching position are hidden. Sensors with background suppression make reliable detection results possible with varying objects.

• Vibration-safe 10-turn adjustment for finest adjustment
• Red-light laser, with small laser spot
• Optical background suppression
• Push-pull pnp + npn
• High resolution, switching accuracy, switching frequency
• Functional reserve indicator
• Robust metal housing
• Universal mounting

Service voltage	10 … 30 V DC
No-load current (max.)	25 mA
Insulation voltage endurance	500 V
Housing dimensions	40 x 30 x 15 mm
Housing length	30 mm
Housing height	40 mm
Housing width	15 mm
Housing material	Die-cast zinc (Black, painted)
Material	Polycarbonate (Window)
Weight	48 g
Protection class	III
Operating principle	Diffuse sensor with background suppression
Evaluation	digital
Design	Cuboid design
Switching output	Push-pull, 100 mA, antivalent, NO/NC
Voltage drop (max.)	2 V
Light source	Laser
Laser class	CLASS 1 LASER PRODUCT, (IEC 60825-1:2014 / EN 60825-1:2014)
Color	Red
Wavelength	650 nm (Pp < 1.6 mW t = 11.4 µs)
Modulation	Clocked
Background suppression	Yes
Light spot size	Ø 2 mm
Ambient light immunity	20 kLx
Switching distance	350 to 600 mm as diffuse sensor
Range	30 … 350 mm
Sensitivity adjustment	Potentiometer (10-turn)
Display	LED green - Operation, yellow - Switching output green - Low functional reserve (flashing)
Switching frequency	1000 Hz
Shock/vibration load	30 g, 10 … 55 Hz / 0.5 mm
Ambient temperature during operation	-10 … +50 °C
Protection type	IP 67
Connection	Connector, M8, 4-pin
Connection cable	TK … /4
