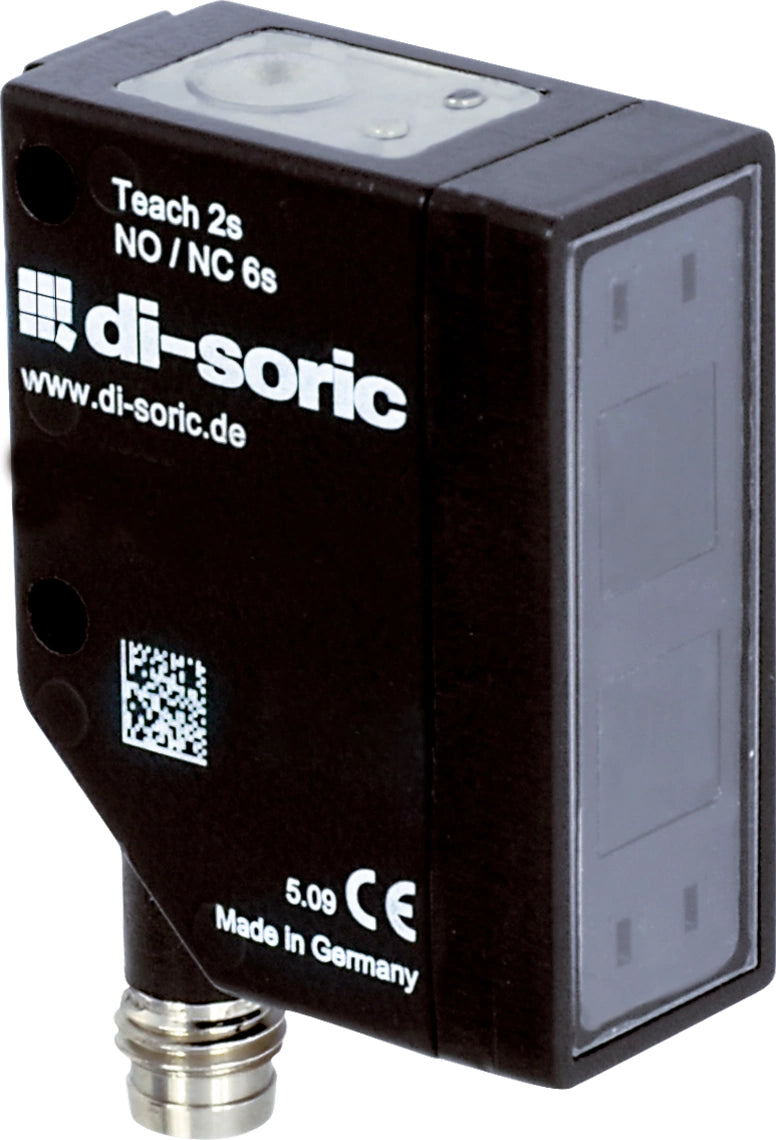

DI-Soric LHT 41 M 0.2 G3-T3 Retroreflective diffuse sensor with background suppression O-40 Metal

Background suppression sensors are efficient sensors for detecting objects in which transmitters and receivers are located in one housing. They evaluate the position of objects. Objects that are located behind the set switching position are hidden. Sensors with background suppression make reliable detection results possible with varying objects.

• Long ranges with a small design
• Connector, rotatable 270°
• Dovetail groove for secure mounting
• NO/NC changeover by teach key
• Auto and two-point teach procedures
• Visible red light with small light spot
• Angled optics
• Display for unstable function

Service voltage	10 … 30 V DC
No-load current (max.)	40 mA
Insulation voltage endurance	500 V
Housing dimensions	41 x 31.5 x 16 mm
Housing length	31.5 mm
Housing height	41 mm
Housing width	16 mm
Housing material	Die-cast zinc (Black, painted)
Material	PMMA (Window)
Protection class	III
Operating principle	Diffuse sensor with background suppression
Evaluation	digital
Design	Cuboid design
Switching output	Push-pull, 200 mA, NO/NC, switchable
Voltage drop (max.)	2 V
Light source	Laser
Laser class	CLASS 1 LASER PRODUCT, (IEC 60825-1:2014 / EN 60825-1:2014)
Color	Red
Wavelength	655 nm (Pp < 2.7 mW t = 9.6 µs)
Modulation	Clocked
Background suppression	Yes
Ambient light immunity	50 kLx
Range	40 … 200 mm
Sensitivity adjustment	Teach button
Switching frequency	500 Hz
Shock/vibration load	30 g, 10 … 55 Hz / 0.5 mm
Ambient temperature during operation	0 … +50 °C
Protection type	IP 67
Connection	Connector, M8, 3-pin
Connection cable	TK …
