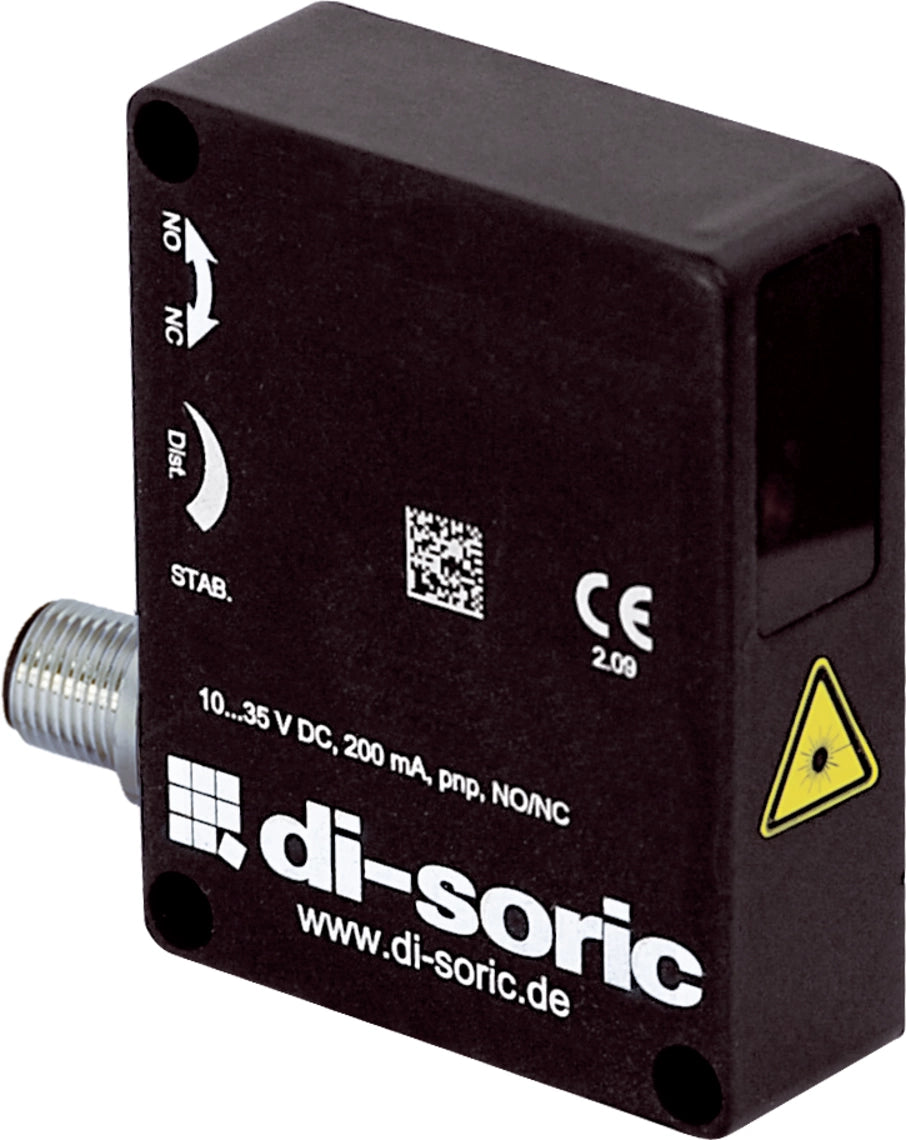

DI-Soric LHT 51 M 200 G3-B4 Retroreflective diffuse sensor with background suppression O-50

Background suppression sensors are efficient sensors for detecting objects in which transmitters and receivers are located in one housing. They evaluate the position of objects. Objects that are located behind the set switching position are hidden. Sensors with background suppression make reliable detection results possible with varying objects.

• Automatic adjustment of transmitting power
• Red-light laser, with small laser spot
• 4-turn potentiometer
• Electronic background suppression
• Bright LED
• Light/dark switching

Service voltage	10 … 35 V DC
No-load current (max.)	25 mA (24 V DC)
Insulation voltage endurance	500 V
Housing dimensions	50 x 40 x 15 mm
Housing length	40 mm
Housing height	50 mm
Housing width	15 mm
Housing material	Die-cast zinc (Black, painted)
Material	PMMA (Window)
Protection class	III
Operating principle	Diffuse sensor with background suppression
Evaluation	digital
Design	Cuboid design
Switching output	Push-pull, 200 mA, NO/NC, switchable
Voltage drop (max.)	2 V
Light source	Laser
Laser class	CLASS 1 LASER PRODUCT, (IEC 60825-1:2014 / EN 60825-1:2014)
Color	Red
Wavelength	650 nm (Pp < 2.6 mW t = 10 µs)
Modulation	Clocked
Background suppression	Yes
Light spot size	Ø 1.5 mm
Ambient light immunity	5 kLx
Range	50 … 200 mm
Switching hysteresis (max.)	6 %
Sensitivity adjustment	Potentiometer
Display	LED green - Operation, yellow - Switching output
Switching frequency	500 Hz
Ambient temperature during operation	-10 … +50 °C
Protection type	IP 67
Connection	Connector, M12, 3-pin
Connection cable	VK …
