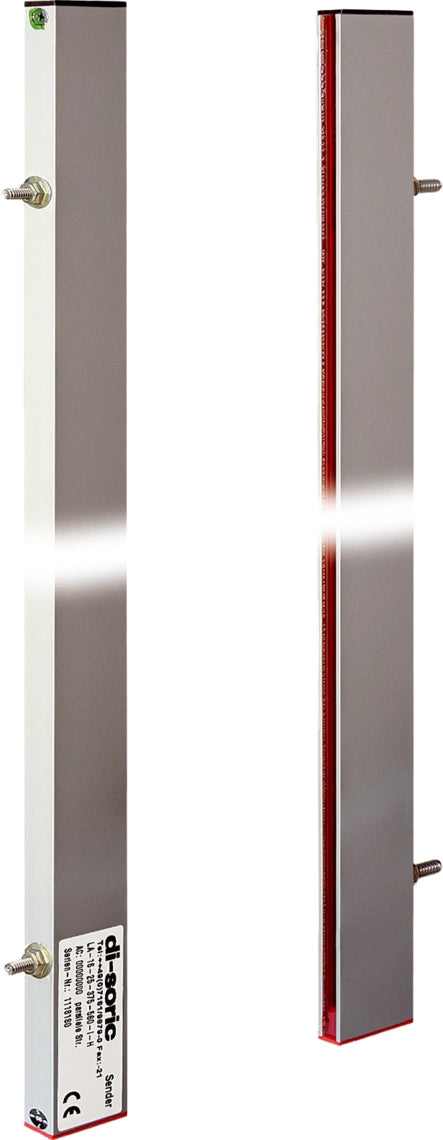

DI-Soric LI 120-12.5-1488-1540 I Measuring light curtain LI

LI measuring light curtains are used in object measurement and for challenging measuring and detection tasks. The most important features are high resolution and a short response time, as well as their slim construction for simple integration. An additional evaluation unit is required to use them.

• With evaluation electronics LVE ... / LVX ... measuring and switching
• With evaluation electronics LVB ... switching
• Beam evaluation horizontal or diagonal
• Compact design
• Aluminum housing
• Easy to install

Service voltage	20 … 26 V DC (see evaluation electronics)
Assembly	Threaded bolt (4)
Profile cross section	12 x 24 mm
Housing height	24 mm
Housing width	12 mm
Profile length	1540 mm
Housing material	Aluminum (natural)
Protection class	III, operation on protective low voltage
Evaluation	absolute, percentage, Configurable via evaluation electronics
Evaluation electronics	external
Output function	Configurable via evaluation electronics
Switching output	Configurable via evaluation electronics, NO, NC
Light source	LED
Color	Infrared
Wavelength	880 nm
Beam evaluation	via external evaluation electronics
Beam separation	12.5 mm
Number of beams	120
Monitoring height	1488 mm
Range	250 … 6000 mm (adjustable via evaluation electronics)
Measuring range	1488 mm
Ambient temperature during operation	-20 … +40 °C
Protection type	IP 54 (IP 65 optional)
Connection	Cable, 4.0 m (with plug connector, additional variants on request)
