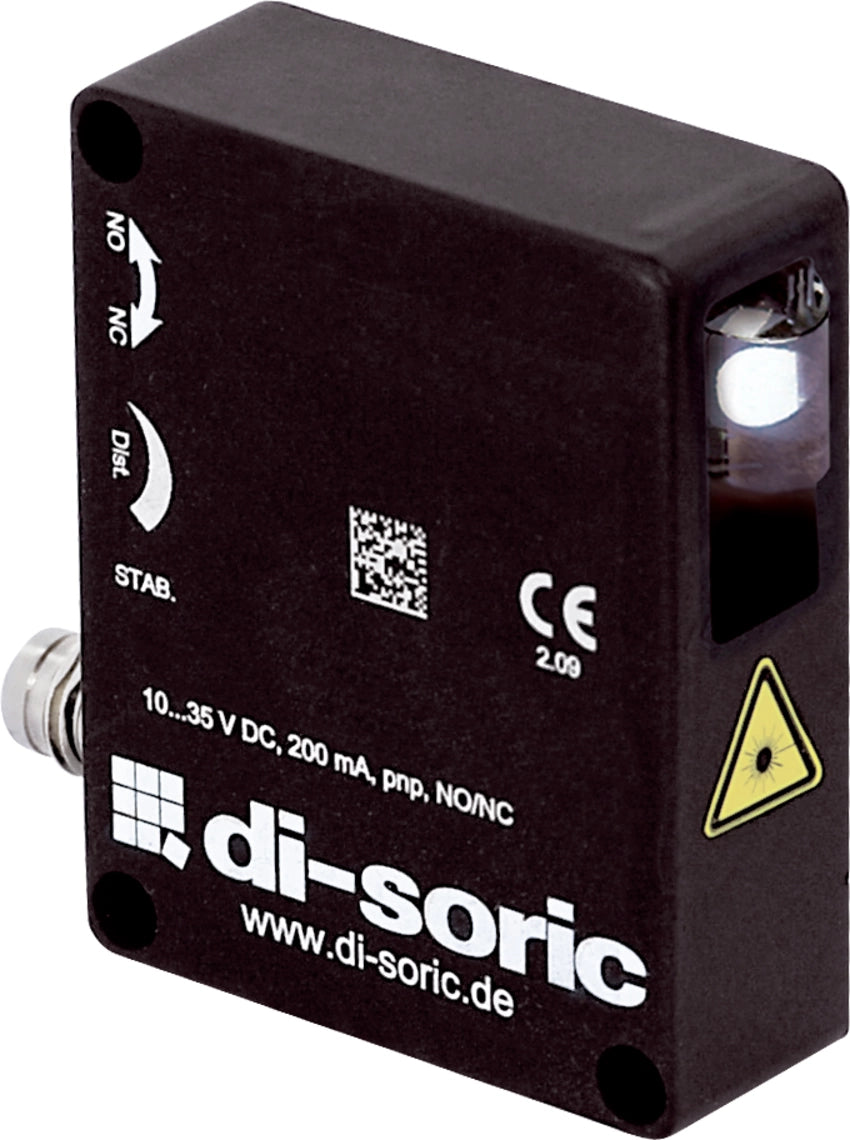

DI-Soric LLRV 51 M 500 P3K-TSSL Retroreflective sensor O-50

The transmitter and receiver are in one housing. The emitted light is reflected back by a reflector and evaluated in the retro reflective sensor. Polarization filters also allow the detection of reflecting objects. Retro reflective sensors make long ranges possible, with simple assembly and a high degree of system availability.

• Fan-shaped laser beam with auto-collimation principle
• Detection of smallest parts within the entire active zone
• Red-light laser
• 4-turn potentiometer
• Robust metal housing

Service voltage	10 … 35 V DC
No-load current (max.)	30 mA
Insulation voltage endurance	500 V
Housing dimensions	50 x 40 x 15 mm
Housing length	40 mm
Housing height	50 mm
Housing width	15 mm
Housing material	Die-cast zinc (Black, painted)
Material	PMMA (Window)
Protection class	III
Operating principle	Retroreflective sensor
Evaluation	digital
Design	Cuboid design
Switching output	pnp, 200 mA, NO/NC, switchable
Light source	Laser
Laser class	CLASS 1 LASER PRODUCT, (IEC 60825-1:2014 / EN 60825-1:2014)
Color	Red
Wavelength	650 nm (Pp < 1.0 mW t = 2.7 µs)
Modulation	Clocked
Ambient light immunity	15 kLx
Range	50 … 500 mm
Resolution	25.0 … 100 % (Light band cover)
Sensitivity adjustment	Potentiometer
Switching frequency	750 Hz
Ambient temperature during operation	+5 … +50 °C
Protection type	IP 67
Connection	Connector, M8, 3-pin
Connection cable	TK …
