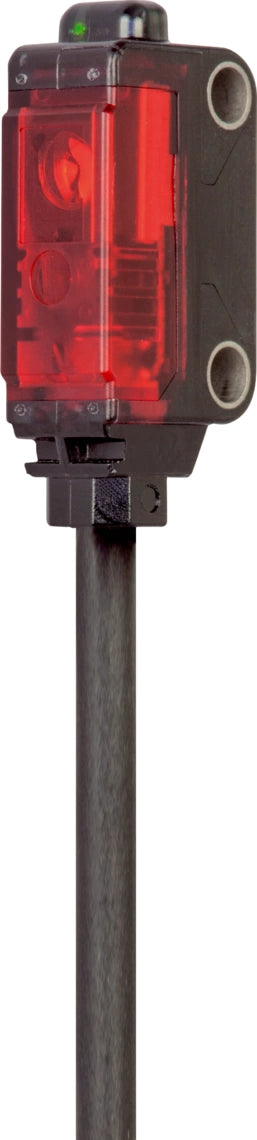

DI-Soric LLT 21 K 70 P3, Diffuse reflection sensor energetic O-20, P\n: 207166

Energetic diffuse reflective sensors are economical sensors for detecting objects in which transmitters and receivers are located in one housing. They evaluate the energy of the reflected sensor light from objects. The working distance and the brightness of object and background influence object detection. Bright objects against a dark background can be detected well with energetic diffuse reflective sensors.

• Long ranges with a small design
• High resolution
• Visible red light with small light spot
• Sensitivity is adjustable
• LED switching status display

Service voltage	10.8 … 26.4 V DC
No-load current (max.)	15 mA
Insulation voltage endurance	1000 V
Housing dimensions	22 x 13 x 8.5 mm
Housing length	13 mm
Housing height	22 mm
Housing width	8.5 mm
Housing material	Plastic
Material	Acrylic (Window)
Protection class	III, operation on protective low voltage
Operating principle	Retroreflective diffuse sensor
Evaluation	digital
Design	Cuboid design
Switching output	pnp, 50 mA, NO/NC
Light source	Laser
Laser class	CLASS 1 LASER PRODUCT, (IEC 60825-1:2014 / EN 60825-1:2014)
Color	Red
Wavelength	655 nm
Modulation	Clocked
Light spot size	1 x 5 mm (at distance of 50 mm)
Ambient light immunity	3 kLx
Range	20 … 70 mm
Resolution	with operating range 50 mm
Smallest detectable object	Ø 0.01 mm (Gold wire)
Sensitivity adjustment	Potentiometer
Switching frequency	1000 Hz
Response time	0.50 ms
Ambient temperature during operation	-10 … +55 °C
Vibration/shock resistance	10 … 500 Hz / 1.5 mm / 10 G
Protection type	IP 67
Connection	Cable, 2.0 m, 4-pin (flying leads)
Connection cable	TK … /4
