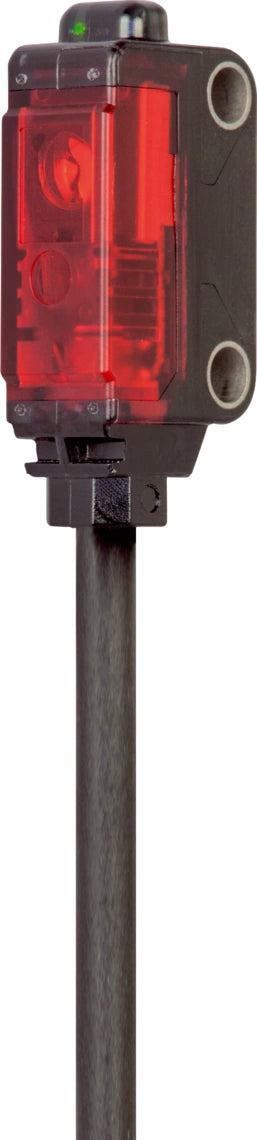

DI-Soric LR 21 K 4000 P3-K-T4, Retroreflective light barrier O-20, P\n: 207264

The transmitter and receiver are in one housing. The emitted light is reflected back by a reflector and evaluated in the retro reflective sensor. Polarization filters also allow the detection of reflecting objects. Retro reflective sensors make long ranges possible, with simple assembly and a high degree of system availability.

• Long ranges with a small design
• High resolution
• Visible red light with small light spot
• Sensitivity is adjustable
• LED switching status display
• Reflector included

Service voltage	10.8 … 26.4 V DC
No-load current (max.)	15 mA
Insulation voltage endurance	1000 V
Housing dimensions	22 x 13 x 8.5 mm
Housing length	13 mm
Housing height	22 mm
Housing width	8.5 mm
Housing material	Plastic
Material	Acrylic (Window)
Protection class	III, operation on protective low voltage
Operating principle	Retroreflective sensor
Evaluation	digital
Design	Cuboid design
Switching output	pnp, 50 mA, NO/NC
Light source	Laser
Color	Red
Wavelength	655 nm
Modulation	Clocked
Light spot size	6 x 4 mm (at 1000 mm distance)
Ambient light immunity	3 kLx
Range	0 … 4000 mm
Referring reflector	RL 45 x 30 (included)
Sensitivity adjustment	Potentiometer
Switching frequency	1000 Hz
Response time	0.50 ms
Ambient temperature during operation	-10 … +55 °C
Protection type	IP 67
Connection	Pigtail, 0.2 m, M8, 4-pin
