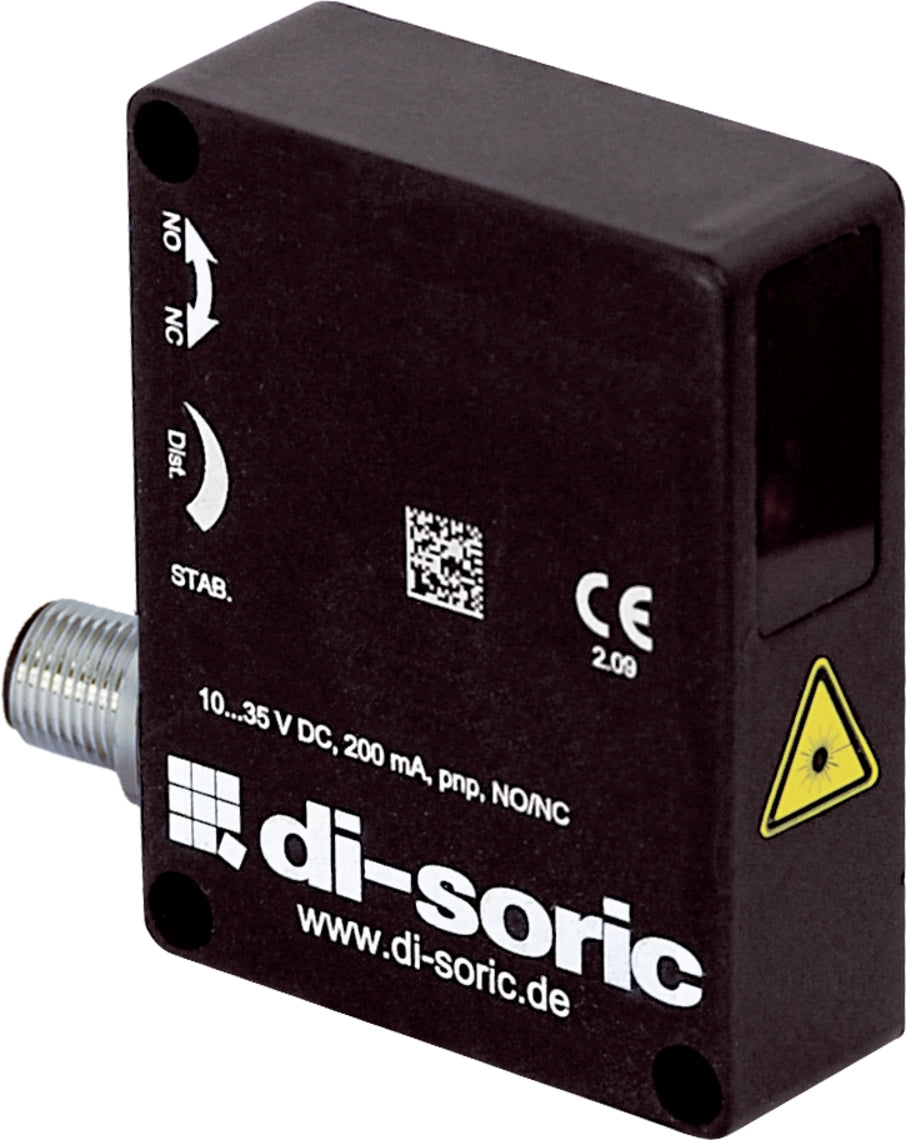

DI-Soric LRV 51 M 10000 P3K-IBS Retroreflective sensor O-50

The transmitter and receiver are in one housing. The emitted light is reflected back by a reflector and evaluated in the retro reflective sensor. Polarization filters also allow the detection of reflecting objects. Retro reflective sensors make long ranges possible, with simple assembly and a high degree of system availability.

• Collimated red-light laser
• Small laser spot and small reflector
• Polarization filter
• High switching frequency
• Robust metal housing
• 4-turn potentiometer
• Bright LED
• Light/dark switching
• Functional reserve indicator/contamination indicator

Service voltage	10 … 35 V DC
No-load current (max.)	40 mA
Insulation voltage endurance	500 V
Housing dimensions	50 x 40 x 15 mm
Housing length	40 mm
Housing height	50 mm
Housing width	15 mm
Housing material	Die-cast zinc (Black, painted)
Material	PMMA (Window)
Protection class	III
Operating principle	Retroreflective sensor
Evaluation	digital
Design	Cuboid design
Switching output	pnp, 200 mA, NO/NC, switchable
Voltage drop (max.)	2.8 V
Light source	Laser
Laser class	CLASS 1 LASER PRODUCT, (IEC 60825-1:2014 / EN 60825-1:2014)
Color	Red
Wavelength	650 nm (Pp < 0.5 mW t = 1.6 µs)
Modulation	Clocked
Ambient light immunity	5 kLx
Range	10000 mm
Resolution	Ø 2.5 mm
Referring reflector	RL 42 x 35 mm (included)
Switching hysteresis (max.)	200 µm
Reproducibility	0.1 mm
Sensitivity adjustment	Potentiometer
Switching frequency	2000 Hz
Response time	2.5 ms
Release time	2.5 ms
Ambient temperature during operation	0 … +50 °C
Protection type	IP 67
Connection	Connector, M12, 3-pin
Connection cable	VK …
