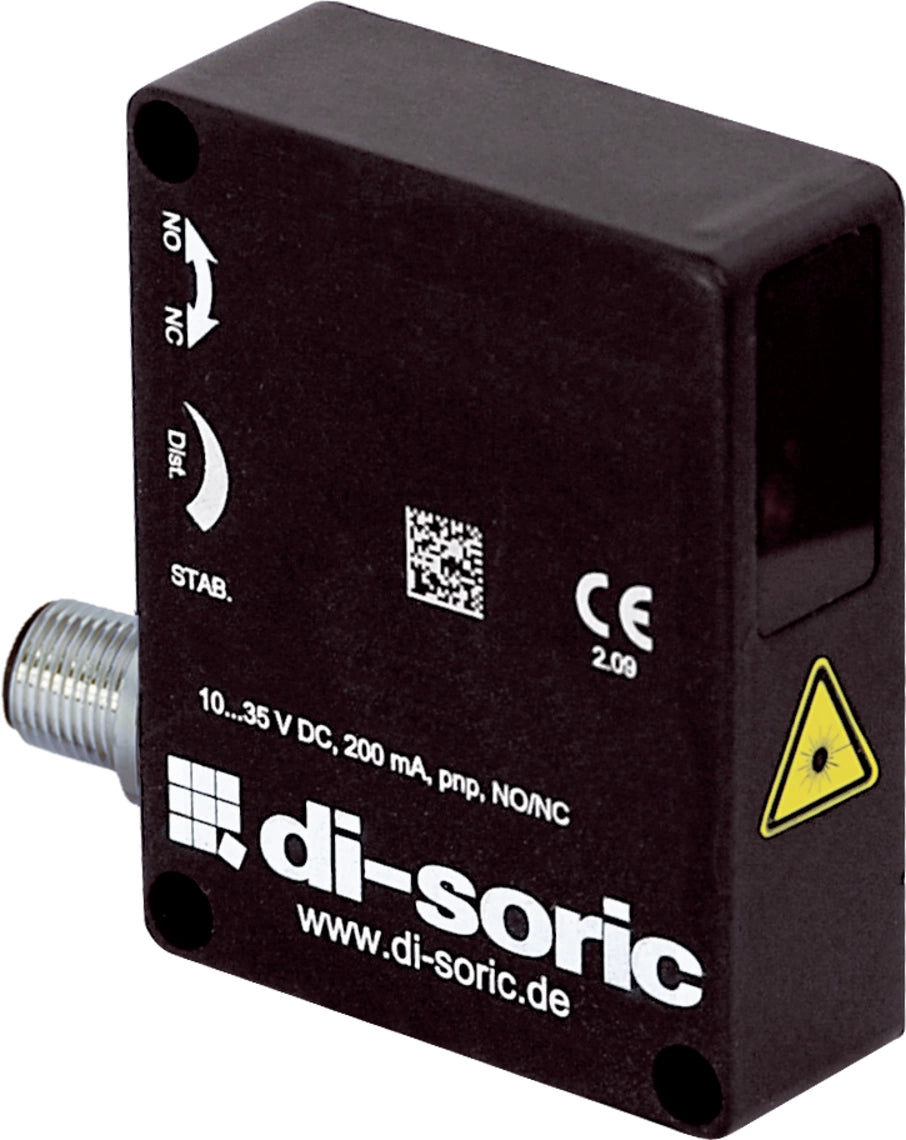

DI-Soric LTV 51 M 600 P3K-IBS Diffuse reflective sensor O-50

Energetic diffuse reflective sensors are economical sensors for detecting objects in which transmitters and receivers are located in one housing. They evaluate the energy of the reflected sensor light from objects. The working distance and the brightness of object and background influence object detection. Bright objects against a dark background can be detected well with energetic diffuse reflective sensors.

• Red-light laser, with small laser spot
• 4-turn potentiometer
• Functional reserve indicator/contamination indicator
• Bright LED
• Light/dark switching

Service voltage	10 … 35 V DC
No-load current (max.)	30 mA
Insulation voltage endurance	500 V
Housing dimensions	50 x 40 x 15 mm
Housing length	40 mm
Housing height	50 mm
Housing width	15 mm
Housing material	Die-cast zinc (Black, painted)
Material	PMMA (Window)
Protection class	III
Operating principle	Retroreflective diffuse sensor
Evaluation	digital
Design	Cuboid design
Switching output	pnp, 200 mA, NO/NC, switchable
Voltage drop (max.)	2 V
Light source	Laser
Laser class	CLASS 1 LASER PRODUCT, (IEC 60825-1:2014 / EN 60825-1:2014)
Color	Red
Wavelength	650 nm (Pp < 1.8 mW t = 8 µs)
Modulation	Clocked
Light spot size	Ø 1.5 mm
Ambient light immunity	5 kLx
Range	100 … 600 mm
Switching hysteresis (max.)	10 %
Reproducibility	< 2 %
Sensitivity adjustment	Potentiometer
Switching frequency	500 Hz
Ambient temperature during operation	-10 … +50 °C
Protection type	IP 67
Connection	Connector, M12, 3-pin
Connection cable	VK …
