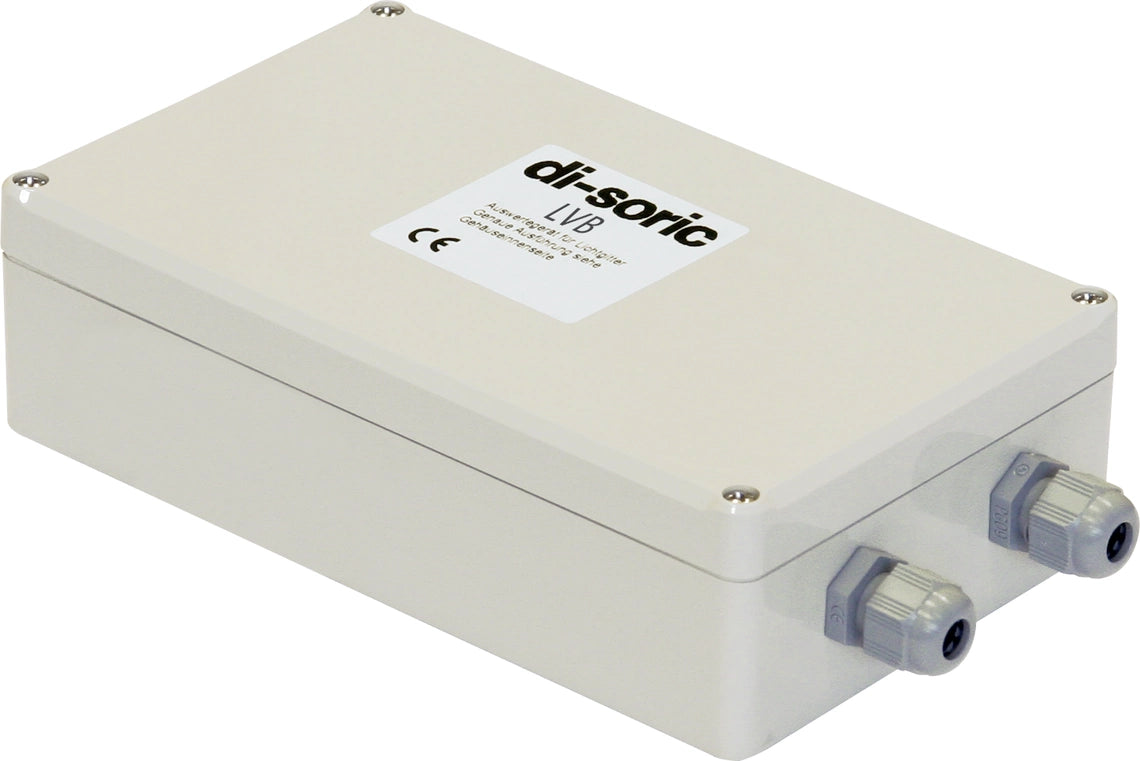

DI-Soric LVB-24VDC Evaluation electronics for measuring light curtains

One or two LI measuring light curtains can be connected to the evaluation units. The evaluation unit is mounted on a standard tophat rail, and the light curtains can thereby be quickly integrated into fieldbus environments.

• Evaluation electronics for one light grid LI ...
• Relative switching threshold, thus very reliable object detection
• Increased safety: Safe switch-off in case of contact sticking
• No fading out of errors
• 1 relay switching output
• Operating distance can be set by autocalibration
• Diagnosis LEDs
• Interface: RS232

Service voltage	19 … 30 V DC
Quantity	1 (number of Light curtains to be operated)
Housing dimensions	200 x 120 x 57.5 mm
Housing material	Plastic (ABS, gray)
EMC directives	EN 61000-6-3:2001 / EN 61000-6-1:2001
Output function	Light switching
Switching output	Relays (1x)
Switching capacity	250 W (250 V DC) / 2000 W (400 V AC)
Beam evaluation	Multiplexing
Number of beams	500 (Max. evaluable)
Range	400 … 6000 mm (Self-adjustment)
Display	LED (Status indicator and error indicator)
Cycle time per light beam	> 0.08 ms (abhängig von Reichweite und Parametrierung)
Switching frequency	10 Hz
Ambient temperature during operation	0 … +40 °C
Protection type	IP 54
Connection	COMBICON, Socket, 1.8 m, 6-pin (coded)
