DI-Soric LVX-ALX Evaluation electronics for measuring light curtains

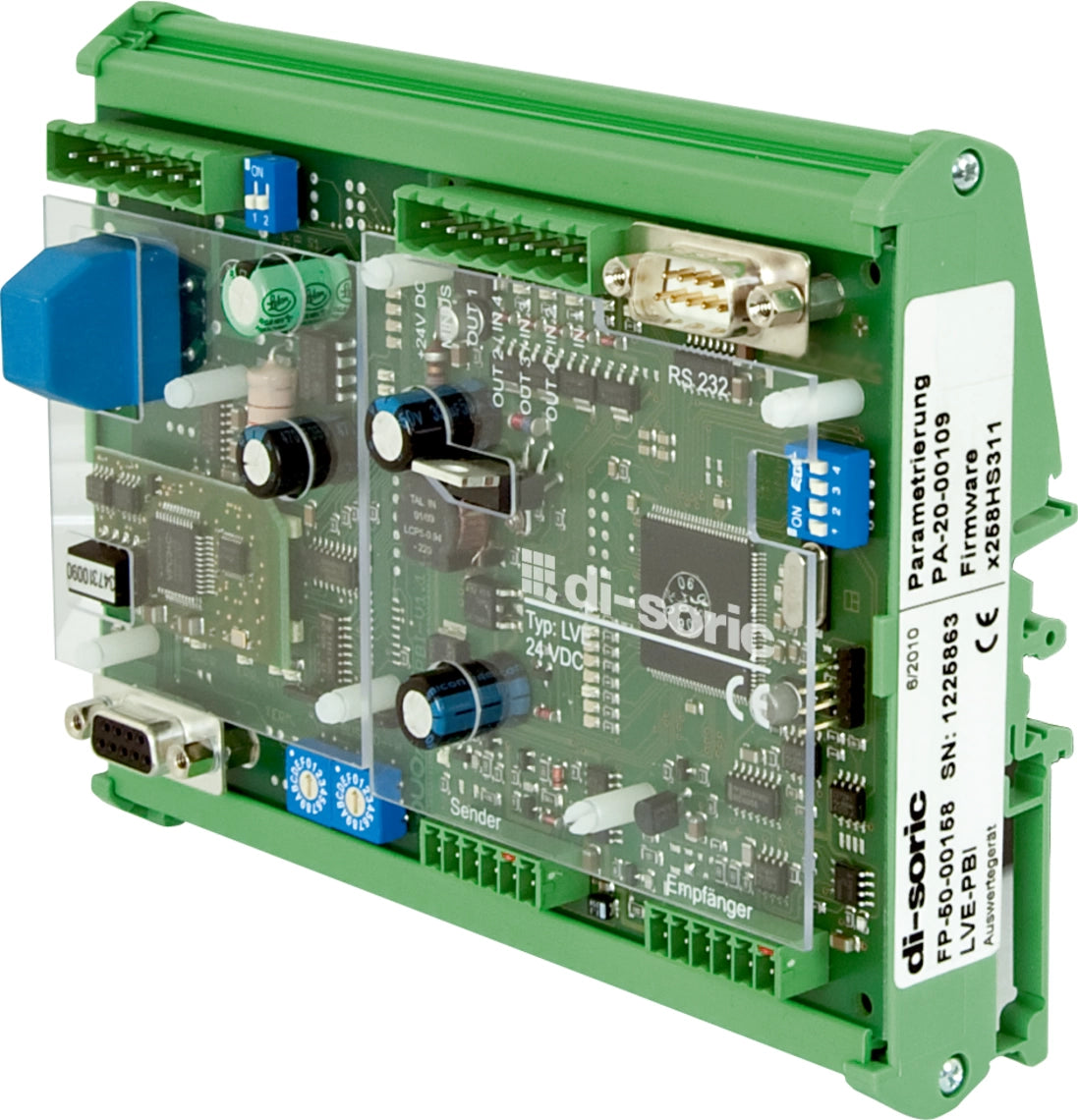

One or two LI measuring light curtains can be connected to the evaluation units. The evaluation unit is mounted on a standard tophat rail, and the light curtains can thereby be quickly integrated into fieldbus environments.

• Evaluation electronics for two light grids LI ...
• Diagnosis LEDs
• Freely configurable functions
• DIN-rail mountable

Service voltage	20 … 26 V DC
Assembly	DIN-rail mountable
Quantity	2 (number of Light curtains to be operated)
Housing dimensions	161 x 126 x 60 mm
Housing material	Plastic
Protection class	III, operation on protective low voltage
EMC directives	EN 61000-6-3:2001 / EN 61000-6-1:2001
Number of inputs/outputs	3
Output function	configurable
Switching output	pnp (3x), 250 mA (24 V DC)
Analog output	0 … 10 V (2x)
Switching capacity	< 7 W
Inputs for which parameters can be set	24 V DC, 12 mA, 3,000 Hz (1x)
Beam evaluation	Parameters can be configured horizontally / diagonally
Number of beams	500 (Max. evaluable)
Display	LED (Error indicator)
Cycle time per light beam	0.05 ms (abhängig von Konfiguration und Reichweite der Lichtgitterleisten)
Ambient temperature during operation	0 … +40 °C
Protection type	IP 00
Connection	Connection compartment
