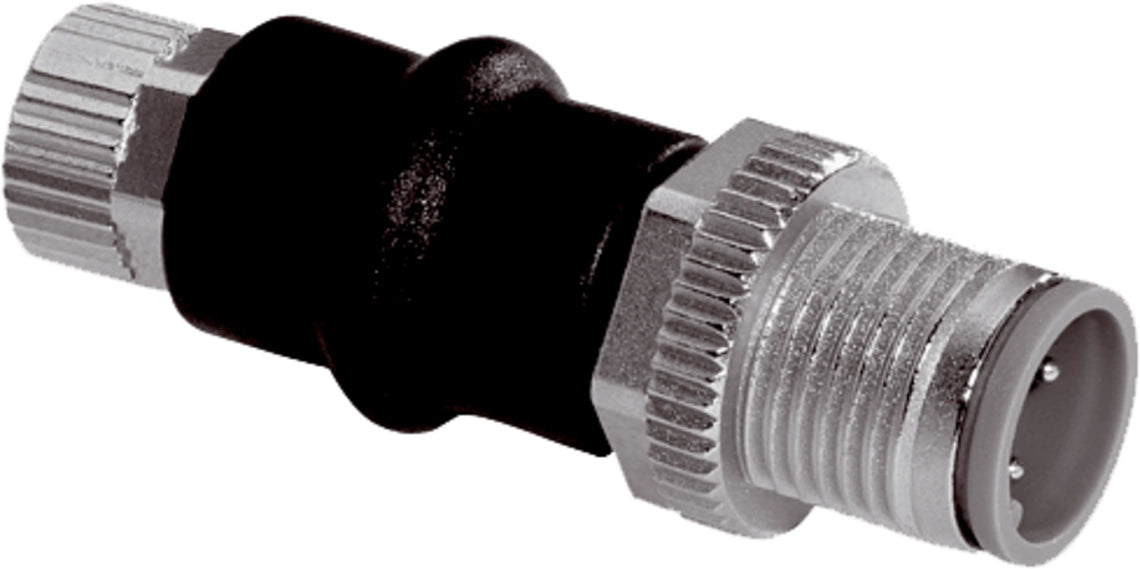

DI-Soric M8K/M12S, Connection technology, sku: 201098

Adapter plugs have a high protection class and are available in different designs. They are useful accessory parts for connecting sensors to previously existing connection cables that are mechanically incompatible.

• Coupling M8, 3-pin / Connector M12, 3-pin
• Turnable metal thread
• High protection type of up to IP 67

Service voltage	< 24 V (with max. 4.0 A)
Housing material	Plastic
Design	straight
Protection type	IP 67
Sensor-side connection	Socket, M8 x 1, 3-pin
Control-side connection	Connector, M12 x 1, 3-pin
