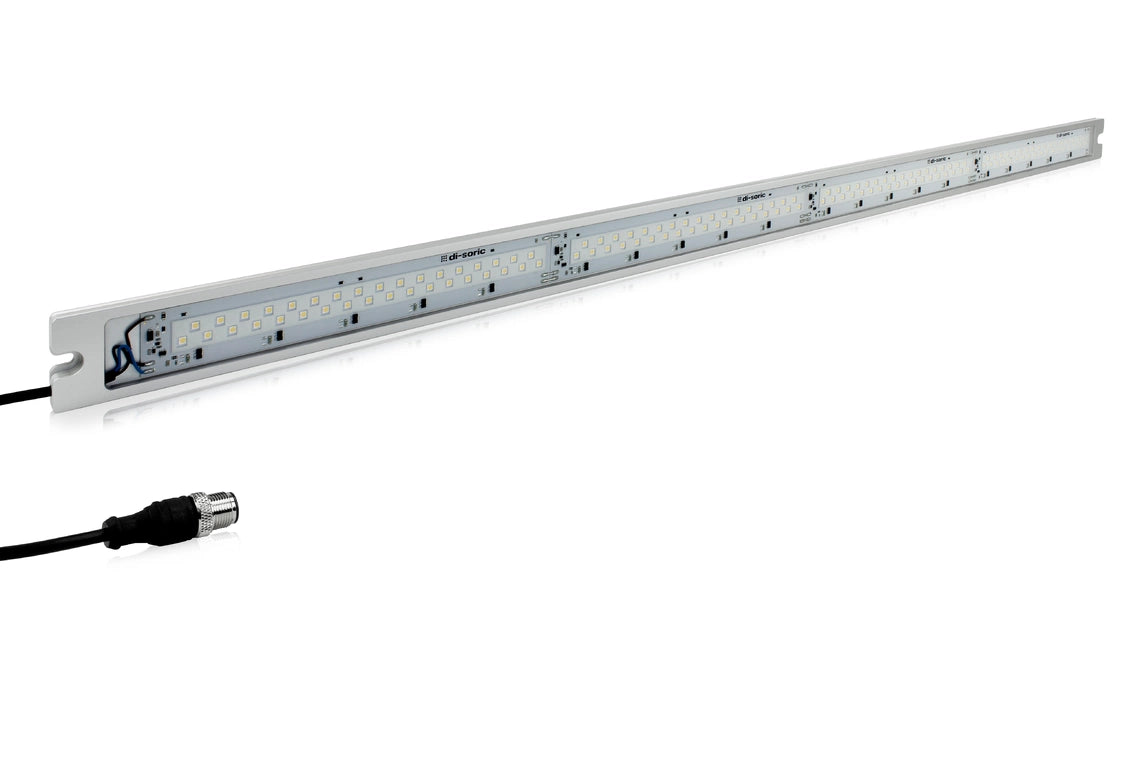

DI-Soric MB-N-911-K-B3 Machine lighting MB-N

The MB-N machine lighting has a compact design and feature load-free triggers. They offer the highest light quality in white, which meets the strictest requirements.

• High light intensity thanks to state-of-the art Power LEDs
• Very good color reproduction guarantees safety at the workplace (color rendering index 85)
• Long life thanks to intelligent thermal management
• High-performance LEDs with very high light intensity ensure reliable and even illumination
• High protection type IP 67
• Trigger input for external control
• Dimmable via PWM signal
• Magnetic holder set available as an option
• Adjustable mounting angle optionally available
• Pluggable diffusion filter optionally available

Service voltage	24 V DC (± 5%, Supply Class 2)
Internal power consumption	1800 mA (24 V DC)
Power	43.2 W (24 V)
Inverse polarity protection	Yes
Cascadable	Not cascadable
Illuminated area	870 x 30 mm
Housing material	Aluminum (natural, Anodized)
Material	PU, crystal clear (Window)
Weight	700 g
Protection class	III, operation on protective low voltage
Risk group (DIN EN 62471)	Free group
Approvals	UL
Model	Machine lighting
Product series	MB-N
Trigger input high level	> 8.0 … 25.2 V
Trigger input low level	< 5.0 V
Light source	LED
Energy efficiency class (VO 2019/2015)	E (A - G)
Color	White (5 000 K)
Deflection angle FWHM	120°
Luminous flux	4400 lm
Color rendering index Ra	85
On-delay time (Trig.)	0.050 ms
Switch off delay (Trig.)	0.050 ms
Shock/vibration load	30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation	0 … +40 °C
Protection type	IP 67
Connection	Pigtail, 0.3 m, M12, 3-pin
Connection cable	VK …
