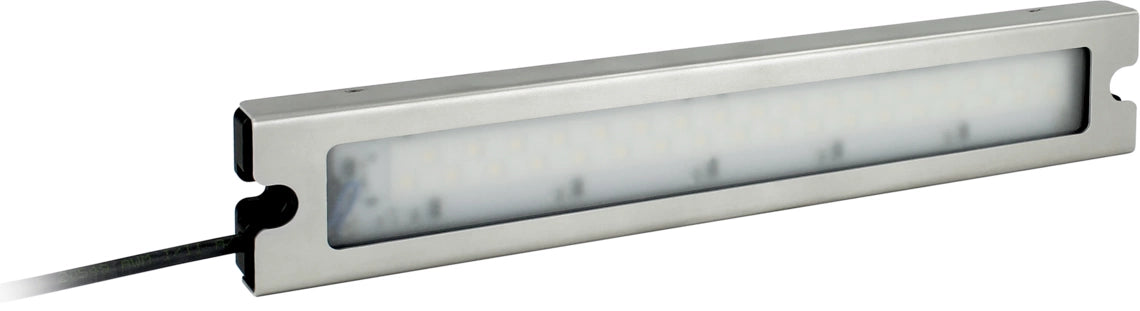

DI-Soric MB-NP-250-K Machine lighting MB-NP Protected

The compact MB-NP Protected machine lighting impress with their high degree of robustness in the face of rough ambient conditions. This machine lighting from di-soric withstand a large number of chemically aggressive cutting and drilling fluids and are protected against cuttings. As a feature, they have load-free triggers and offer the highest light quality in white, which meets the strictest requirements.

• High light intensity thanks to state-of-the art Power LEDs
• Very good color reproduction guarantees safety at the workplace (color rendering index 85)
• Long life thanks to intelligent thermal management
• High-performance LEDs with very high light intensity ensure reliable and even illumination
• High protection type IP 67
• Trigger input for external control
• Dimmable via PWM signal
• Resistant to materials such as bases, saline solutions, oils and greases
• Resistant to inundation with hot chips

Service voltage	24 V DC (± 5%, Supply Class 2)
Internal power consumption	450 mA (24 V DC)
Power	10.8 W (24 V)
Inverse polarity protection	Yes
Cascadable	Not cascadable
Illuminated area	220 x 30 mm
Housing material	Aluminum
Weight	410 g
Protection class	III, operation on protective low voltage
Risk group (DIN EN 62471)	Free group
Approvals	UL
Model	Machine lighting
Product series	MB-NP Protected
Trigger input high level	8.0 … 25.2 V
Trigger input low level	< 5.0 V
Light source	LED
Energy efficiency class (VO 2019/2015)	F (A - G)
Color	White (5 000 K)
Deflection angle FWHM	120°
Color rendering index Ra	85
On-delay time (Trig.)	0.050 ms
Switch off delay (Trig.)	0.050 ms
Shock/vibration load	30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation	0 … +40 °C
Protection type	IP 67
Connection	Cable, 3.0 m, 3-pin (flying leads), 3 x 0.34 mm²
