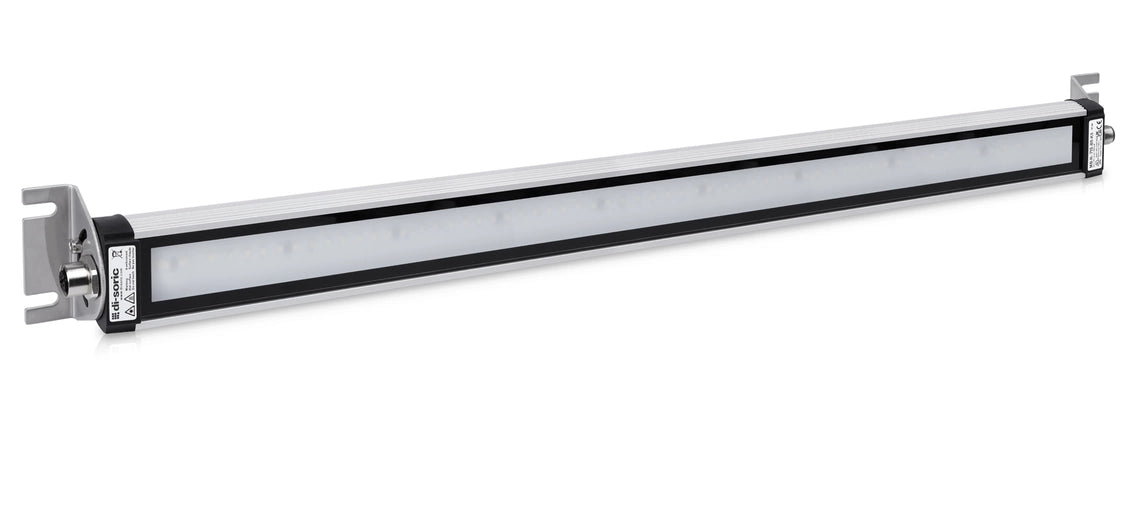

DI-Soric MB-R-715-B5-K5 Machine lighting semicircular MB-R

This robust, semicircle machine lighting is ideal for use in machines or in rough production environments due to its expanded temperature range, modern plug connection technology and hardened safety glass. The neutral white light ensures pleasant lighting conditions. More information

• Cascadability
• Easy wiring
• Extended temperature range -20 .. +50 °C
• M12 plug connector for easy wiring
• Industrial quality due to IP 67
• Homogeneous light distribution
• Pleasant, neutral white light

Service voltage	24 V DC (± 10%)
Internal power consumption	800 mA (24 V DC)
Power	19.0 W (24 V)
Inverse polarity protection	Yes
Cascadable	Yes, max. 3 (with the same luminaire length)
Illuminated area	675 x 23.5 mm
Housing material	Aluminum (natural, Anodized)
Material	Tempered safety glass, diffuse (Diffusor)
Weight	1030 g
Protection class	III, operation on protective low voltage
Risk group (DIN EN 62471)	Free group
Approvals	UL
Model	Machine lighting, semicircle
Service life	> 50.000 h (L70/B10)
Product series	MB-R
Light source	LED
Energy efficiency class (VO 2019/2015)	F (A - G)
Color	White (5 000 K)
Deflection angle FWHM	102° (typ.)
Luminous flux	1775 lm
Light yield (VO 2019/2015)	102 lm/W
Color rendering index Ra	> 80
Shock/vibration load	30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation	-20 … +50 °C
Protection type	IP 67
Connection	Connector, M12, 5-pin (A-coded)
Connection 2	Coupling, M12, 5-pin (A-coded)
