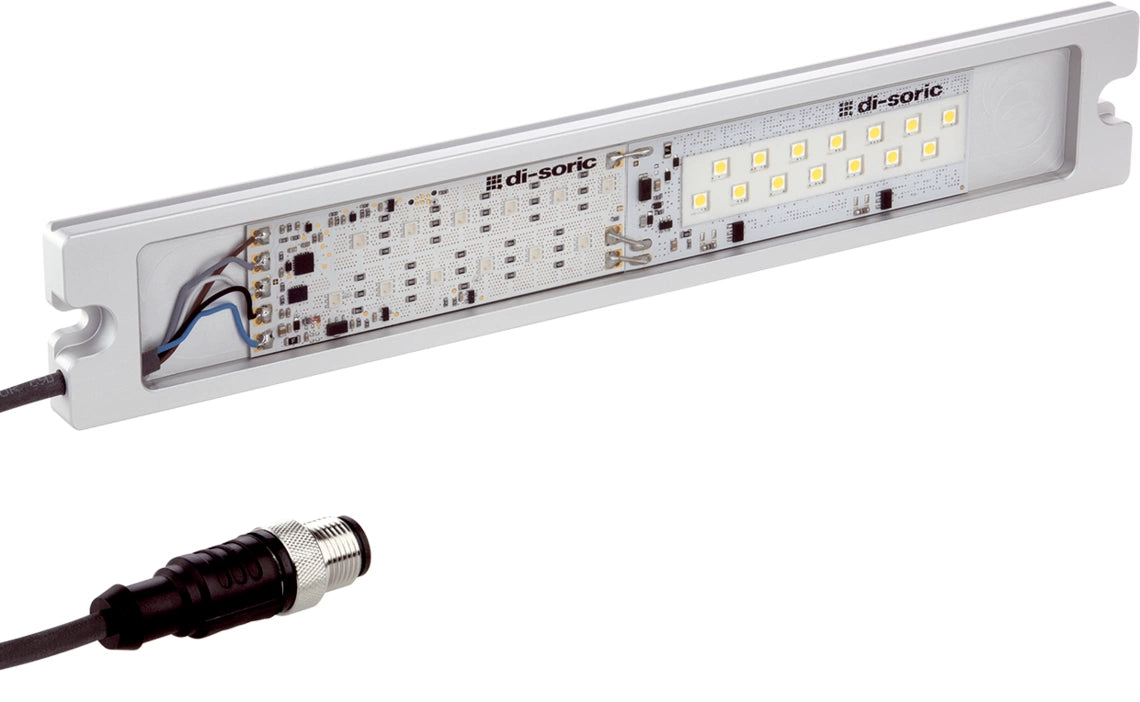

DI-Soric MB-RGBW-251-K-B5 Machine lighting MB-RGBW with status indicator

These machine lighting from di-soric offer the highest light quality in white and RGB which meets the strictest requirements. An individual color parameterization using IO-Link is possible. Compact construction and load-free triggers are further features of this lighting.

• High light intensity thanks to state-of-the art Power LEDs
• Easy operation is also possible without IO-Link
• Very good color reproduction guarantees safety at the workplace (color rendering index 85)
• Large light field for optimal display of the machine status
• Freely configurable functions via IO-Link
• Long life thanks to intelligent thermal management
• High-performance LEDs with very high light intensity ensure reliable and even illumination
• Can be used immediately thanks to three color pre-sets: red - green - yellow
• High protection type IP 67
• Pluggable diffusion filter optionally available

Service voltage	24 V DC (Supply Class 2)
Internal power consumption	305 mA (24 V DC)
Power	7.3 W (24 V DC)
Inverse polarity protection	Yes
Cascadable	Not cascadable
Illuminated area	220 x 30 mm
Housing material	Aluminum (natural, Anodized)
Weight	210 g
Protection class	III, operation on protective low voltage
Risk group (DIN EN 62471)	Free group
Approvals	UL
Model	Machine lighting with signal lighting element
Product series	MB-RGBW
Operation modes	RGB: constant, blinking, flashing
Light intensity can be adjusted	via IO-Link
Trigger input high level	> 8.0 V
Trigger input low level	< 5.0 V
Trigger input	White: selectable via trigger 3
Color	RGB (user-defined)
Deflection angle FWHM	120°
Luminous flux	440 lm
Shock/vibration load	30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation	0 … +40 °C
Protection type	IP 67
Connection	Pigtail, 0.3 m, M12, 5-pin
Connection cable	VK … /5
